Accelerate Access to Critical Data for Data-Intensive Workloads and Applications
Ultrastar NVMe series SSDs perform at the speed of today’s business needs. Enabling faster intelligence and access to critical data, these SSDs meet the growing digital demands of your business applications. Our top-end Ultrastar DC SN200 drive delivers extreme performance and ultra-low latency to the top tier of enterprise storage. It takes hyper-converged infrastructure (HCI) system throughput to new levels and helps scale on-line transaction processing (OLTP). Our Essential NVMe drives, Ultrastar DC SN620 and DC SN630, offer low latency and higher bandwidth for a seamless transition away from SATA SSDs in mixed-use and read-intensive applications. This combination of high throughput and predictable low latency delivers high performance for deeper insights and faster results for today’s data intensive applications.
Maximum Throughput
Up to 1.2M read IOPS to help power through demanding workloads
Low Latency
Predictable throughput for high-transaction workloads
Design Flexibility
Choice of form factors to support range of data centers requirements
Features
NVMe version: 1.3
SSD capacity: 3.2 TB
SSD form factor: 2.5"
Interface: U.2
Feature: NVMe
Memory type: 3D TLC
Component for: NAS
Read speed: 2500 MB/s
Write speed: 1200 MB/s
Random read (4KB): 332510 IOPS
Random write (4KB): 88140 IOPS
Read latency: 239 µs
PCI Express interface data lanes: x4
Uncorrectable Bit Error Rate (UBER): < 1 per 10^10 bits read
Mean time between failures (MTBF): 2000000 h
Feature: Windows operating systems supported
Feature: Mac operating systems supported
Feature: Linux operating systems supported
SSD usage tag: Data center
Power
Operating voltage: 12 V
Power consumption (read): 8.75 W
Power consumption (idle): 5.9 W
Weight & dimensions
Width: 69.8 mm
Depth: 100.5 mm
Height: 7 mm
Weight: 95 g
Operational conditions
Operating temperature (T-T): 0 - 78 °C
Storage temperature (T-T): -40 - 70 °C
Other features
SSD endurance rating: 2 DWPD
Logistics data
Harmonized System (HS) code: 84717070

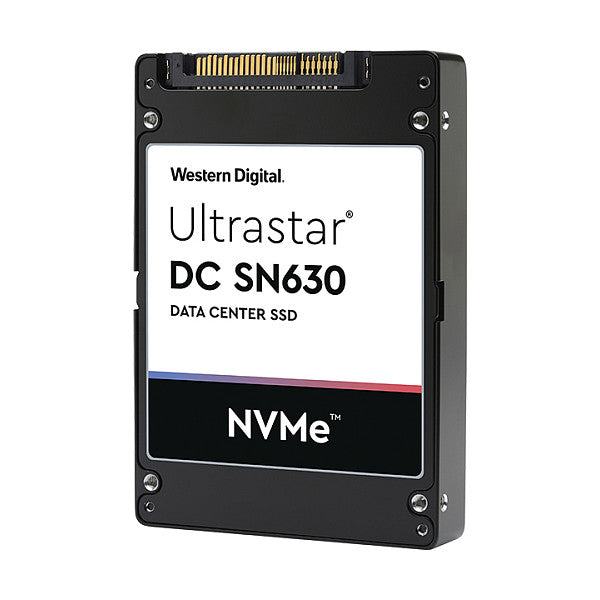

Western Digital Ultrastar DC SN630. SSD capacity: 3.2 TB, SSD form factor: 2.5", Read speed: 2500 MB/s, Write speed: 1200 MB/s, Component for: NAS
Western Digital
MBR CODE - 0TS1639
EAN - 8717306633048
