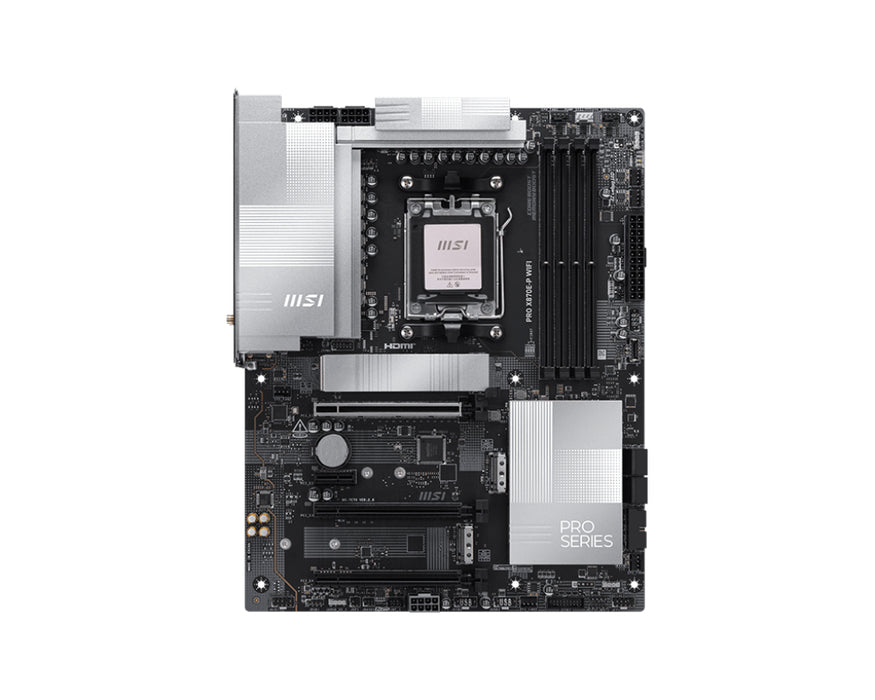

PRO X870E-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+2+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870E-P WIFI is ready for the challenge of high-end processors.
DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO X870-P WIFI is ready to deliver the world-class memory performance.
Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,5600,8200 MHz
Supported memory clock speed (max): 8200 MHz
Maximum internal memory: 256 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 7
Number of storage drives supported: 4
Feature: RAID support
RAID levels: 0, 1
Internal I/O
USB 2.0 connectors: 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: EPS power connector (8-pin)
Feature: TPM connector
Feature: RGB LED pin header
Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB4 Gen 2x2 ports quantity: 1
USB4 Gen 3x2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Network
Feature: Ethernet LAN
Ethernet interface type: 5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD X870E
Audio output channels: 7.1 channels
Product colour: Black
PC health monitoring: CPU, Fan, Temperature, Voltage
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x1 slots: 1
PCI Express x16 slots: 3
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2580
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
Weight & dimensions
Width: 243.8 mm
Depth: 304.8 mm
MSI PRO X870E-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax),.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
MSI
MBR CODE - 7E70-003R
EAN - 4711377347600
