Display
Display diagonal: 60.5 cm (23.8")
Display resolution: 2560 x 1440 pixels
HD type: Quad HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Feature: LED backlight
Backlight type: W-LED
Display brightness (typical): 300 cd/m²
Response time: 6 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1500:1
Maximum refresh rate: 120 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Response time (fast): 4 ms
Pixel pitch: 0.2058 x 0.2058 mm
Pixel density: 123 ppi
Viewable size, vertical: 52.7 cm
Viewable size diagonal: 29.6 cm
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10)
Colour depth: 8 bit
Colour gamut standard: Rec. 709
Colour gamut: 99%
sRGB coverage (typical): 99%
Performance
Feature: Low Blue Light technology
Windows operating systems supported: Windows 10, Windows 11
Design
Product colour: Black
Colour name: Eclipse Black
Feet colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 140 W
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort out quantity: 1
DisplayPort out version: 1.4
DisplayPort version: 1.4
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15.5 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: -45 - 45°
Feature: Tilt adjustment
Tilt angle range: -5 - 23.5°
Power
Energy efficiency class (SDR): D
Energy efficiency class (HDR): F
Energy consumption (SDR) per 1000 hours: 14 kWh
Energy consumption (HDR) per 1000 hours: 22 kWh
Power consumption (typical): 16.5 W
Power consumption (standby): 0.5 W
Power consumption (max): 210 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 539.8 mm
Depth (with stand): 190 mm
Height (with stand): 505.8 mm
Weight (with stand): 5.6 kg
Width (without stand): 539.8 mm
Depth (without stand): 45.3 mm
Height (without stand): 315.8 mm
Weight (without stand): 3.6 kg
Bezel width (side): 2 mm
Bezel width (top): 2 mm
Bezel width (bottom): 1.15 cm
Packaging data
Package width: 730 mm
Package depth: 123 mm
Package height: 420 mm
Package weight: 8.4 kg
Packaging content
Feature: Stand included
Cables included: DisplayPort, Power, USB Type-A to USB Type-B, USB Type-C to USB Type-C
Feature: Quick start guide
DisplayPort cable length: 1.8 m
Power cable length: 1.8 m
Other features
Ethernet LAN data rates: 2500 Mbit/s
Ethernet LAN (RJ-45) ports: 1

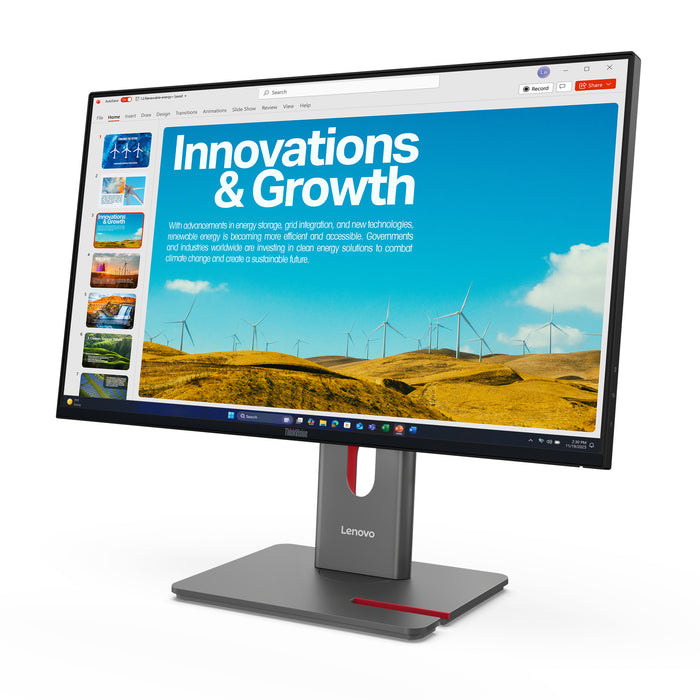

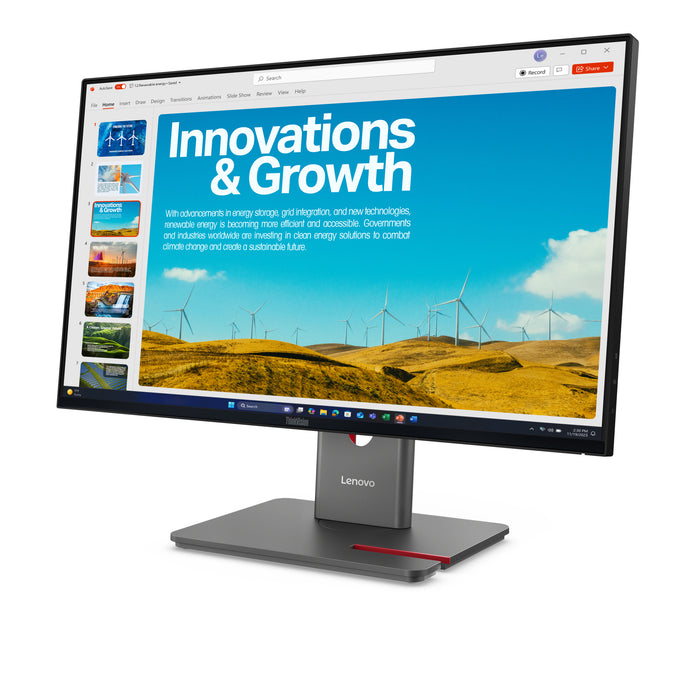

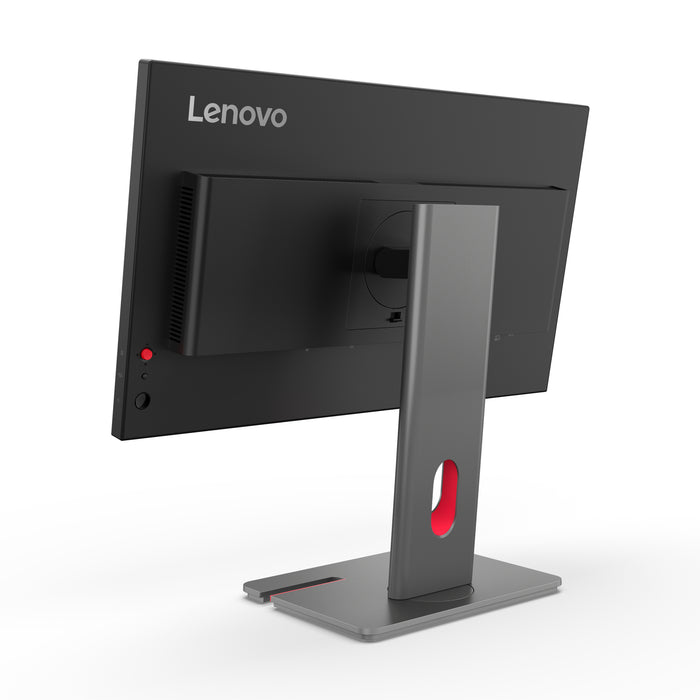

Lenovo ThinkVision P24QD-40. Display diagonal: 60.5 cm (23.8"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LCD, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black
Lenovo
MBR CODE - 64B1GAT1EU
EAN - 0198156544872
Display diagonal | 60.5 cm (23.8") |
Display resolution | 2560 x 1440 pixels |
HD type | Quad HD |
Native aspect ratio | 16:9 |
Display technology | LCD |
Panel type | IPS |
LED backlight | Yes |
Backlight type | W-LED |
Touchscreen | No |
Display brightness (typical) | 300 cd/m² |
Response time | 6 ms |
Anti-glare screen | Yes |
Screen shape | Flat |
Contrast ratio (typical) | 1500:1 |
Maximum refresh rate | 120 Hz |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colours | 16.7 million colours |
Response time (fast) | 4 ms |
Pixel pitch | 0.2058 x 0.2058 mm |
Pixel density | 123 ppi |
Viewable size, vertical | 52.7 cm |
Viewable size diagonal | 29.6 cm |
High Dynamic Range (HDR) supported | Yes |
High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
Colour depth | 8 bit |
Colour gamut standard | Rec. 709 |
Colour gamut | 99% |
sRGB coverage (typical) | 99% |
NVIDIA G-SYNC | No |
AMD FreeSync | No |
Low Blue Light technology | Yes |
Windows operating systems supported | Windows 10, Windows 11 |
Built-in speaker(s) | No |
Built-in microphone | No |
Built-in camera | No |
Product colour | Black |
Colour name | Eclipse Black |
Feet colour | Black |
Built-in USB hub | Yes |
USB upstream port type | USB Type-B, USB Type-C |
Number of upstream ports | 2 |
Number of USB Type-B upstream ports quantity | 1 |
Number of USB Type-C upstream ports quantity | 1 |
USB Type-A downstream ports quantity | 4 |
USB Type-C downstream ports quantity | 1 |
USB Type-C DisplayPort Alternate Mode | Yes |
USB Power Delivery (USB PD) | Yes |
USB Power Delivery up to | 140 W |
HDMI | Yes |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 2 |
DisplayPort out quantity | 1 |
DisplayPort out version | 1.4 |
DisplayPort version | 1.4 |
Headphone out | No |
Ethernet LAN | Yes |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Height adjustment | Yes |
Adjustable height (max) | 15.5 cm |
Pivot | Yes |
Pivot angle | -90 - 90° |
Swivelling | Yes |
Swivel angle range | -45 - 45° |
Tilt adjustment | Yes |
Tilt angle range | -5 - 23.5° |
Energy efficiency class (SDR) | D |
Energy efficiency class (HDR) | F |
Energy consumption (SDR) per 1000 hours | 14 kWh |
Energy consumption (HDR) per 1000 hours | 22 kWh |
Power consumption (typical) | 16.5 W |
Power consumption (standby) | 0.5 W |
Power consumption (max) | 210 W |
Power consumption (off) | 0.3 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power supply type | Internal |
Energy efficiency scale | A to G |
Width (with stand) | 539.8 mm |
Depth (with stand) | 190 mm |
Height (with stand) | 505.8 mm |
Weight (with stand) | 5.6 kg |
Width (without stand) | 539.8 mm |
Depth (without stand) | 45.3 mm |
Height (without stand) | 315.8 mm |
Weight (without stand) | 3.6 kg |
Bezel width (side) | 2 mm |
Bezel width (top) | 2 mm |
Bezel width (bottom) | 1.15 cm |
Package width | 730 mm |
Package depth | 123 mm |
Package height | 420 mm |
Package weight | 8.4 kg |
Stand included | Yes |
Cables included | DisplayPort, Power, USB Type-A to USB Type-B, USB Type-C to USB Type-C |
Quick start guide | Yes |
DisplayPort cable length | 1.8 m |
Power cable length | 1.8 m |
Ethernet LAN data rates | 2500 Mbit/s |
Ethernet LAN (RJ-45) ports | 1 |
Certification | ENERGY STAR Certified,TCO 10.0, TCO Edge 2.1, EU Energy Efficiency Level (Level-D), EPEAT Gold TÜV Rheinland Eye Comfort 5 Stars, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution) |
