80 Plus® 230V EU White Certification
HYPER 80+ PRO series, 80 PLUS® 230V EU White certified, saves energy through its high efficiency up to 82% and excesses the standard through its high efficiency up to 85%.
DC-to-DC Module Design
With a 12V SR circuit and the DC to DC structure, HYPER 80+ PRO series ensure you outstanding conversion efficiency and provides stable output voltage.
450V 105C, Heavy-duty capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern day systems.
Keep in Compliance IEC 62368
FSP Group provides a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC 62368 standard for your gaming rigs.
Intelligent Fan Speed Control
An advanced thermal control fan makes optimal cooling and reduces noise under maximum operation.
120mm fan and heat dissipation design to spin quietly and keep cooling under maximum operation.
All Black Round Cables
The all black coating round cables give your system a superior look rather so many entry-level power supplies.
| Total power | 650 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 649.2 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.1 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 17 ms |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (8-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | Sleeve |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |
| On/off switch | Yes |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Certification | IEC 62368 |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.46 kg |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |

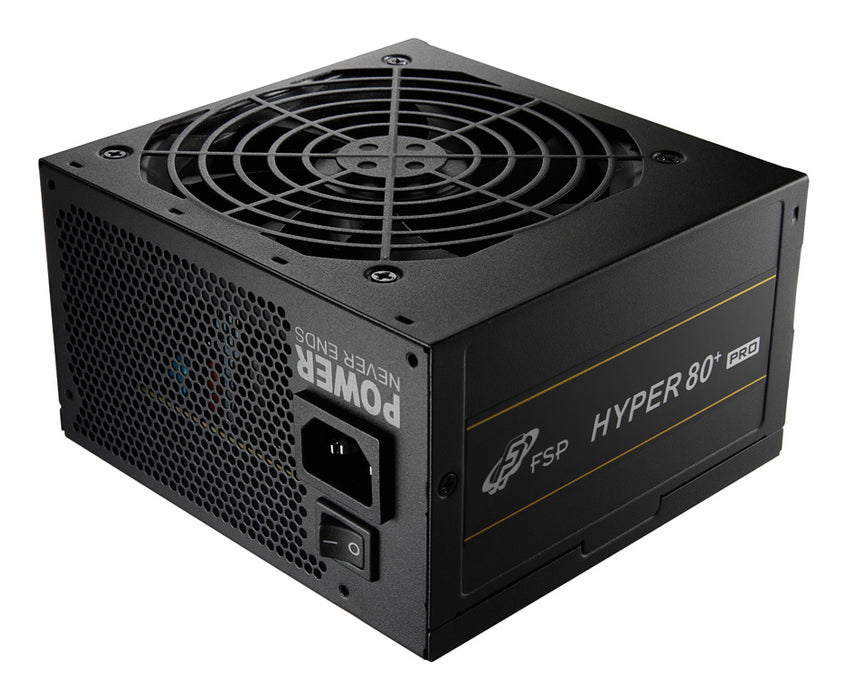

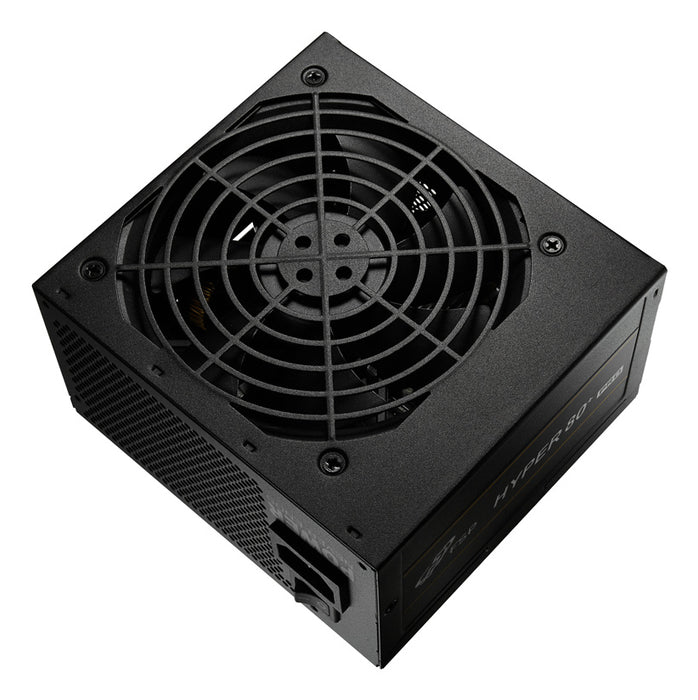

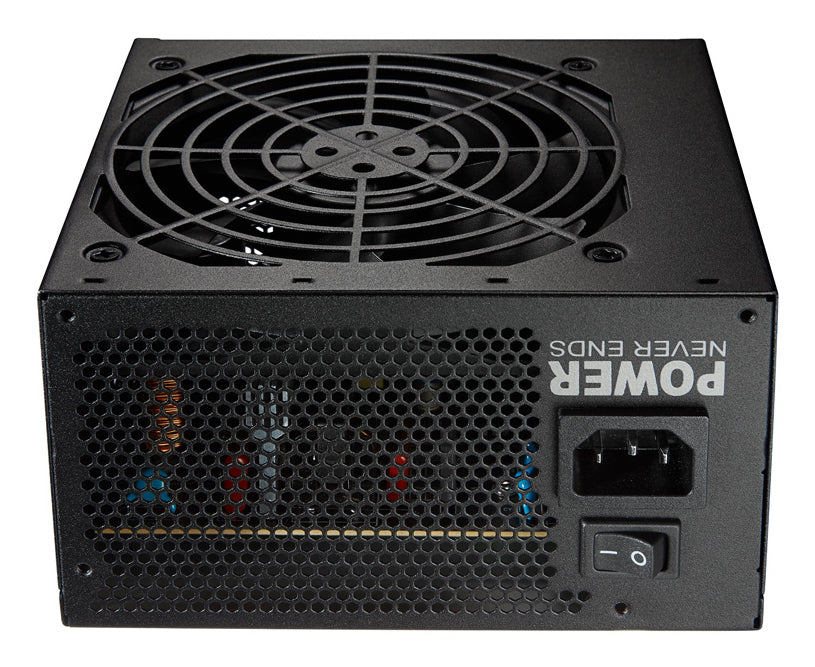

FSP HYPER 80+PRO650 power supply unit 650 W 24-pin ATX ATX Black
