10-Point PCAP Touch Screen
The TX-2202A White touch screen incorporates PCAP touch technology, offering a 10-point multi-touch capability that remains unaffected by contamination. This results in a fast, accurate, and responsive touch experience, comparable to that of smartphones and tablets, and is responsive even when wearing latex gloves.
Enhanced Safety with Medical-grade Power Supply
Compliance with IEC/EN 60601-1 standards for power supplies ensures the safety of staff and patients in clinical settings by preventing electric shocks and reducing energy-related and heat-related hazards.
Front IP65 Dust and Water Protection
The TX-2202A White’s multi-touch monitor features a front-sided IP65 rating, protecting against dust and liquid spills, making it ideal for high-traffic public areas.
Impact-Resistant Against Vandalism
With an IK08 rating and a metal casing, the touch display is protected against impacts and acts of vandalism, ensuring a long service life in high-traffic areas.
Ergonomic Monitors with Flexible Mounting
The TX-2202A White 22” 10-point touch screen monitor is VESA compatible, offering various mounting options, including desk, wall, or monitor arm mounting. The included ergonomic stand allows for a wide tilt range of -2 to 180 degrees, enhancing ergonomics during use.
Seamless integration
Touch support is compatible with various operating systems, including Windows, Linux, macOS, and certain Android versions. This allows for greater flexibility in choosing your operating system.
Versatile Connectivity

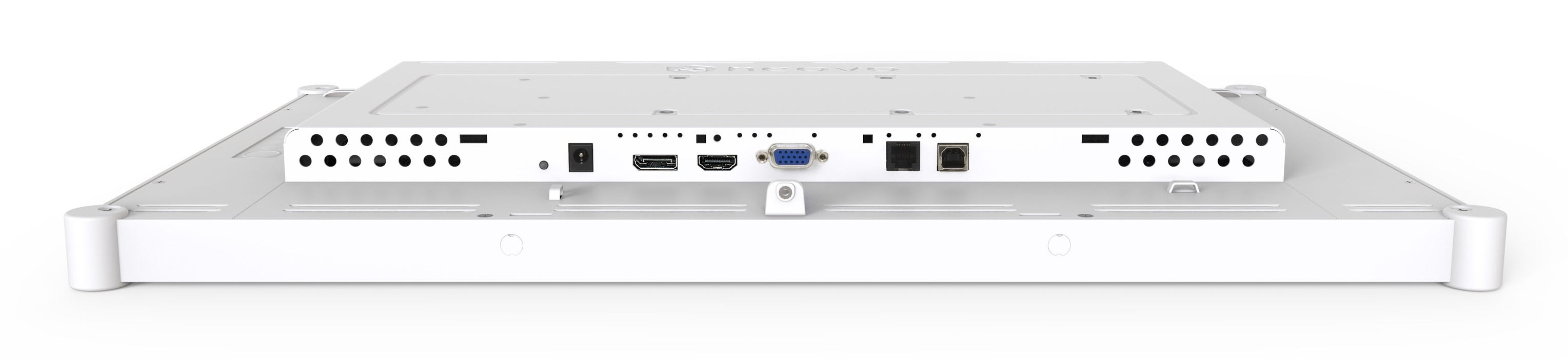

The TX-2202A White offers a range of connectivity options, making it easy for users to connect their devices, such as high-performance PCs or media players, using DisplayPort, HDMI, or VGA inputs.
Display diagonal | 54.6 cm (21.5") |
Display resolution | 1920 x 1080 pixels |
HD type | Full HD |
Native aspect ratio | 16:9 |
Display technology | LCD |
Panel type | VA |
Touchscreen | Yes |
Touchscreen technology | Capacitive |
Touch technology | Multi-touch |
Number of simultaneous touchpoints | 10 |
Display brightness (typical) | 250 cd/m² |
Response time | 5 ms |
Anti-glare screen | Yes |
Screen shape | Flat |
Contrast ratio (typical) | 1000:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colours | 16.7 million colours |
Pixel pitch | 0.248 x 0.248 mm |
Horizontal scan range | 30 - 84 kHz |
Vertical scan range | 50 - 76 Hz |
Haze rate | 25% |
Surface hardness | 7H |
NVIDIA G-SYNC | No |
AMD FreeSync | No |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
Other operating systems supported | Android |
Number of speakers | 2 |
RMS rated power | 4 W |
Built-in speaker(s) | Yes |
Built-in camera | No |
Market positioning | Medical |
Product colour | White |
Housing material | Metal |
Glass thickness | 2.05 mm |
Built-in USB hub | No |
USB upstream port type | USB Type-B |
Number of USB Type-B upstream ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
HDMI | Yes |
HDMI ports quantity | 1 |
HDMI version | 1.4 |
DisplayPorts quantity | 1 |
Audio input | Yes |
Headphone out | No |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
Tilt angle range | -5 - 90° |
Energy efficiency class (SDR) | E |
Energy efficiency class (HDR) | Not available |
Energy consumption (SDR) per 1000 hours | 15 kWh |
Power consumption (typical) | 15 W |
Power consumption (standby) | 0.7 W |
Power consumption (off) | 0.3 W |
Power supply type | External |
European Product Registry for Energy Labelling (EPREL) code | 1372216 |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Storage relative humidity (H-H) | 10 - 90% |
Width (with stand) | 528.6 mm |
Depth (with stand) | 214.2 mm |
Height (with stand) | 346.7 mm |
Weight (with stand) | 6.7 kg |
Width (without stand) | 528.6 mm |
Depth (without stand) | 48.5 mm |
Height (without stand) | 324.3 mm |
Weight (without stand) | 4.8 kg |
Package width | 610 mm |
Package depth | 320 mm |
Package height | 460 mm |
Package weight | 9.8 kg |
Cables included | AC, Audio, HDMI, USB, VGA |
Power adapter included | Yes |
Quick start guide | Yes |
Sustainability compliance | Yes |
International Protection (IP) code | IP65 |
Protection features | Dust resistant, Waterproof |
Transmission rate | 90% |
Compliance certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
