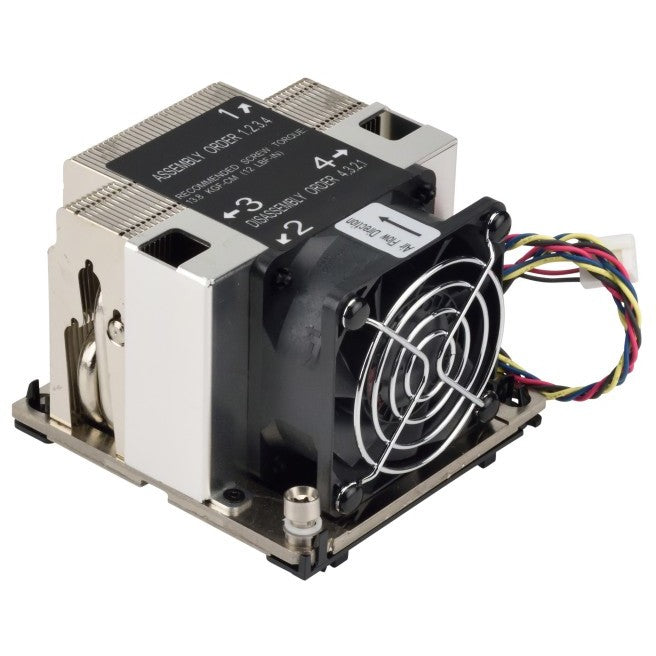

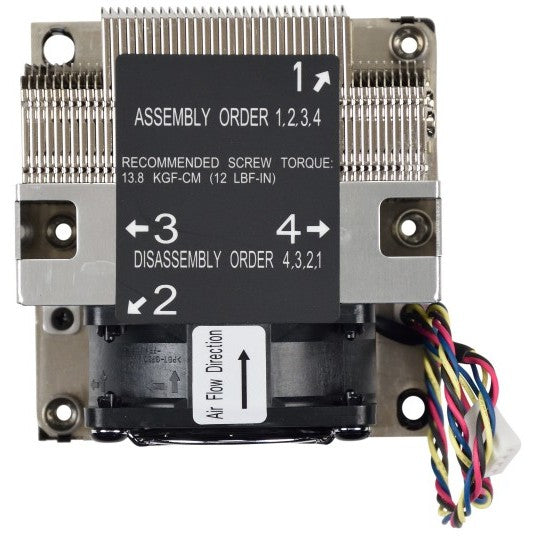

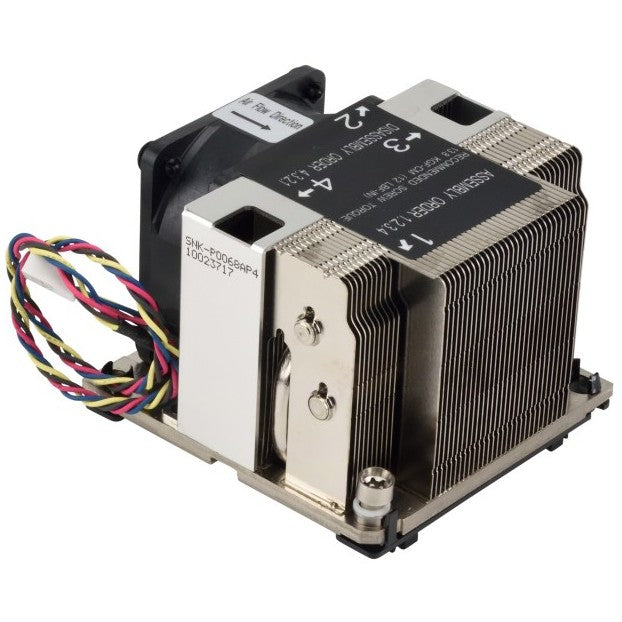

This CPU heat sink is designed for Supermicro X11DPL-i motherboard with 2U and above chassis equipped with Intel® Xeon® scalable processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 6 cm
Supported processor sockets: LGA 3647 (Socket P)
Compatible processor series: Intel® Xeon®
Rotational speed (max): 8400 RPM
Noise level (high speed): 52 dB
Mean time between failures (MTBF): 145190 h
Design
Product colour: Black, Nickel
Number of fans: 1 fan(s)
Fan connector: 4-pin
Rack capacity: 2U
Certification: REACH
Weight & dimensions
Fan dimensions (W x D x H): 60 x 25 x 60 mm
Technical details
Compliance certificates: RoHS
Other features
Fan rated voltage: 12 V
Mean time to failure (MTTF): 145190 h
Logistics data
Harmonized System (HS) code: 84733080
Supermicro SNK-P0068AP4. Type: Air cooler, Fan diameter: 6 cm, Rotational speed (max): 8400 RPM. Product colour: Black, Nickel
Super Micro
MBR CODE - SNK-P0068AP4
EAN - 0672042302758
