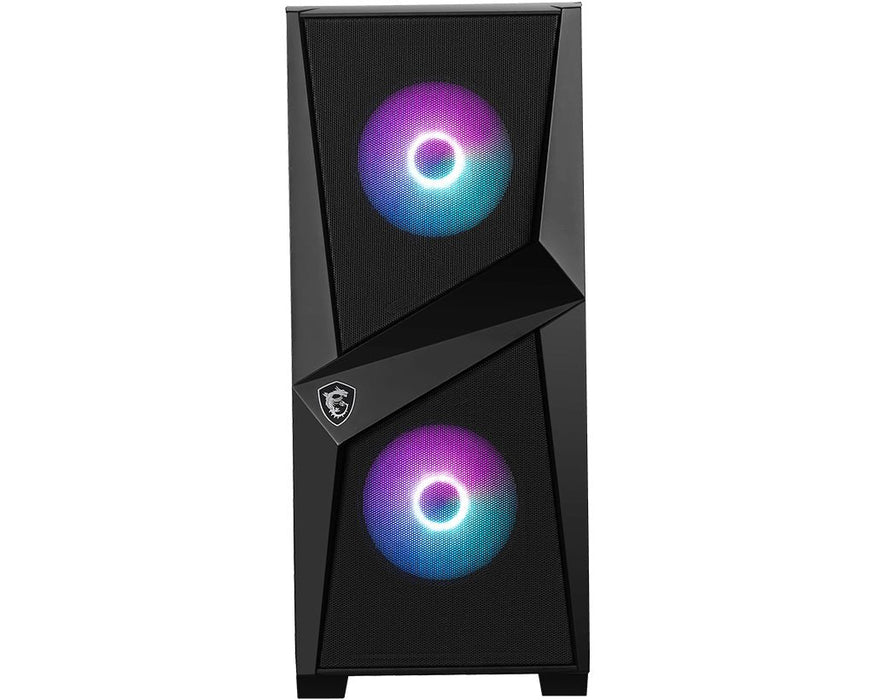

OPTIMIZED AIR FLOW
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.
READY FOR OPTIMIZED MOTHERBOARD
Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.

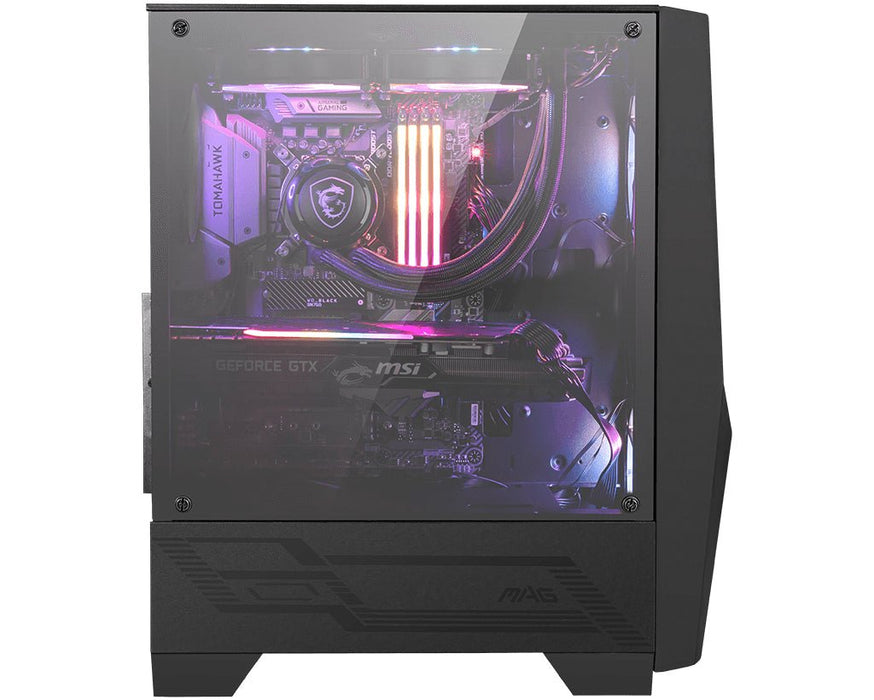

TOOL-LESS TEMPERED GLASS
The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.
The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.
PERSONALIZE YOUR GAMING RIG
ustomizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build.
1 to 6 ARGB LED Control Board
User can intuitively control & switch 9 lighting effects through the LED switch button.
LED Switch Button
Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.
Design
Material: Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black, Transparent
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 3
Number of internal 3.5" bays: 2
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Reset button
Feature: On/off button
Feature: LED indicators
Maximum CPU cooler height: 16 cm
Maximum graphics card length: 33 cm
Maximum PSU length: 20 cm
Power supply
Power supply location: Bottom
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Front fans installed: 2x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Front fans supported description: addressable RGB LED
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Storage
Supported HDD sizes: 2.5,3.5"
Feature: HDD/SSD combo cage
Weight & dimensions
Width: 210 mm
Depth: 421 mm
Height: 499 mm
Weight: 5.64 kg
Logistics data
Harmonized System (HS) code: 84733080

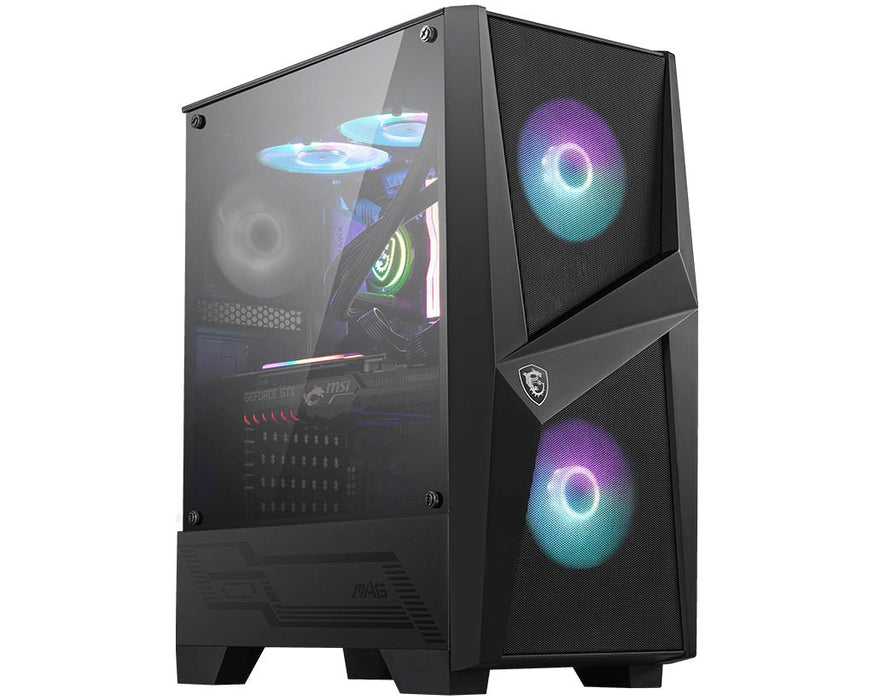

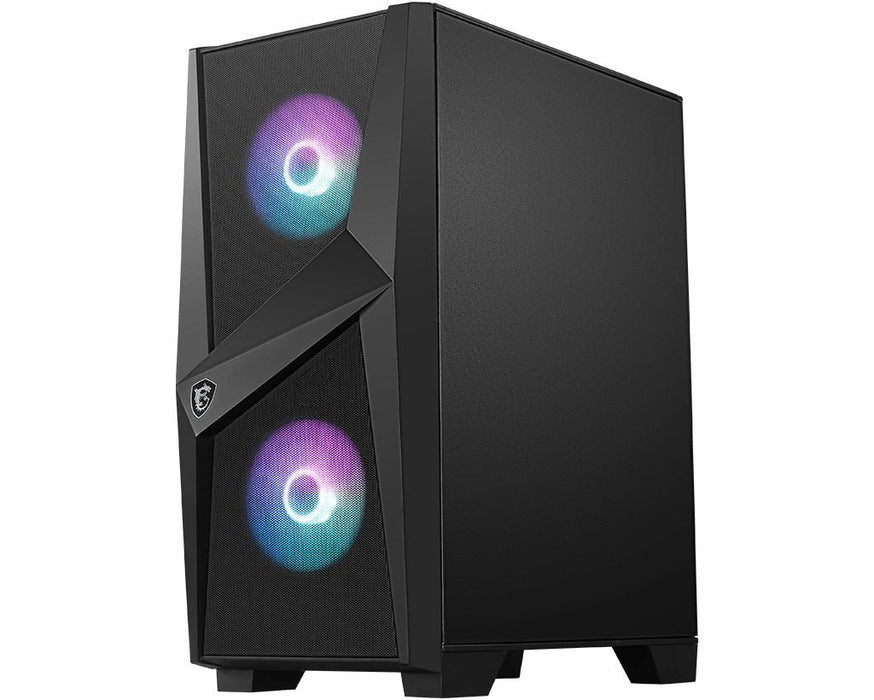

MSI MAG FORGE 100R Mid Tower Gaming Computer Case 'Black, 2x 120mm ARGB PWM Fan, 1x 120mm Fan, 1-6 ARGB Hub, Mystic Light Sync, Tempered Glass Panel, ATX, mATX, mini-ITX'. Form factor: Midi Tower, Type: PC, Product colour: Black, Transparent. Power supply location: Bottom. Front fans installed: 2x 120 mm, Front fans diameters supported: 120,140 mm, Front fans supported description: addressable RGB LED. Supported HDD sizes: 2.5,3.5". Width: 210 mm, Depth: 421 mm, Height: 499 mm
MSI
MBR CODE - 306-7G03R21-809
EAN - 4719072676407
