Unparalleled collaboration. Quick installation.

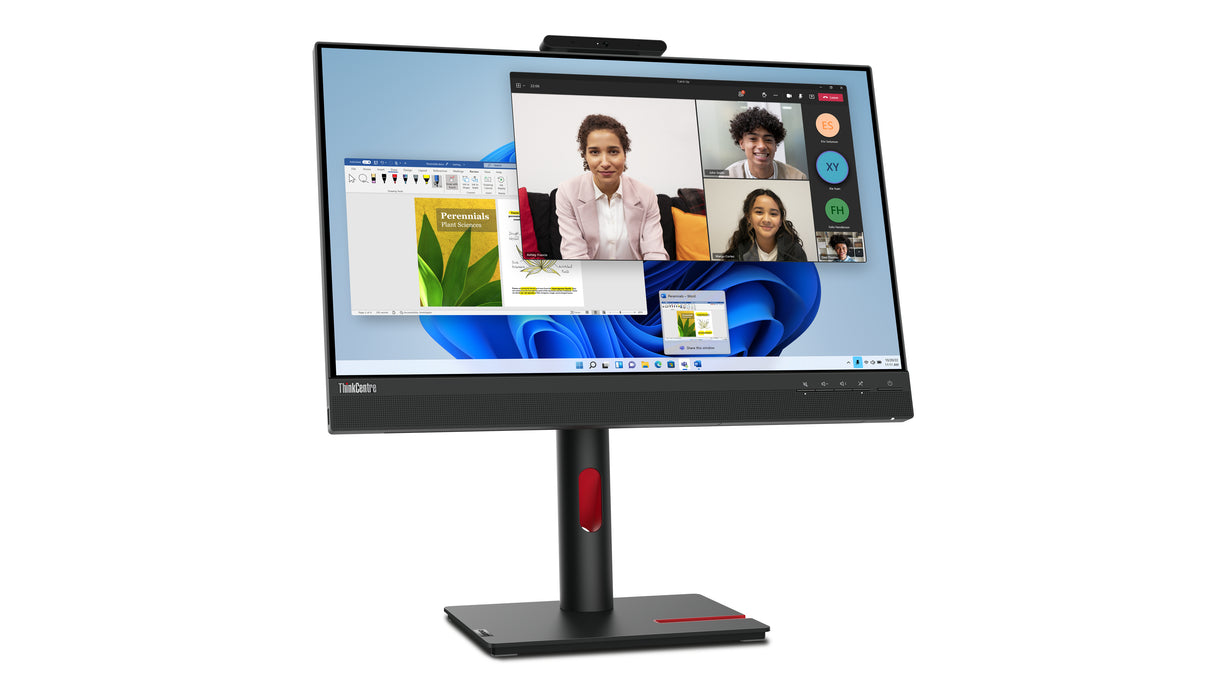

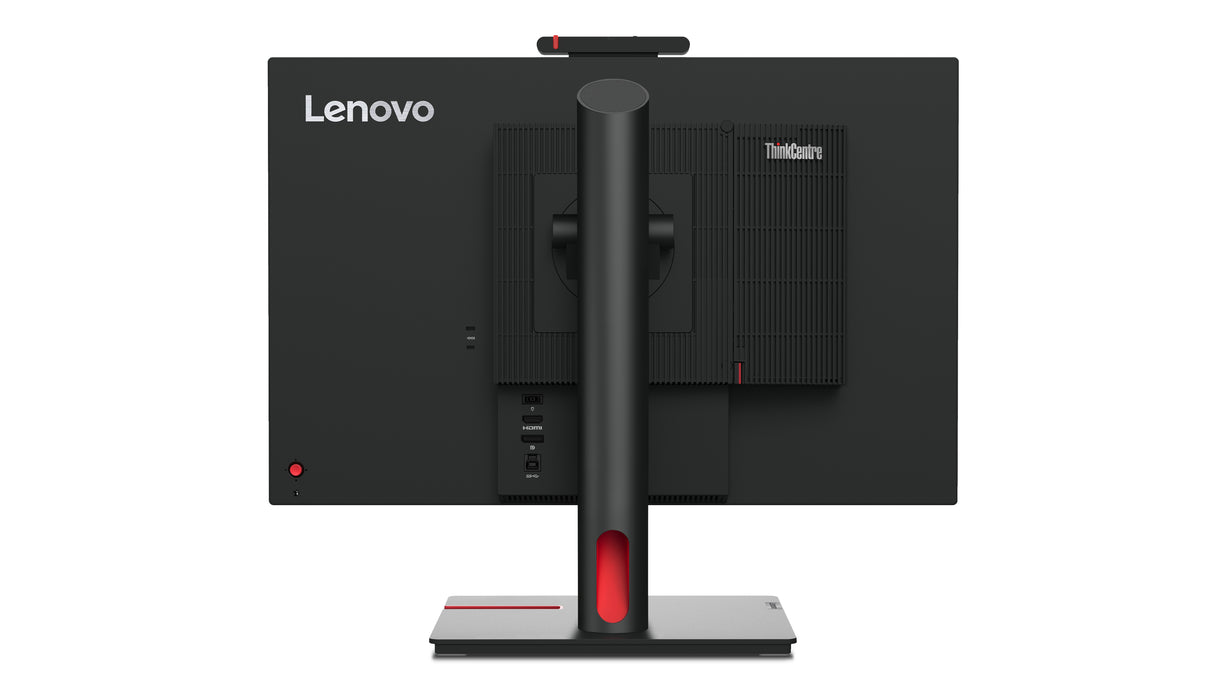

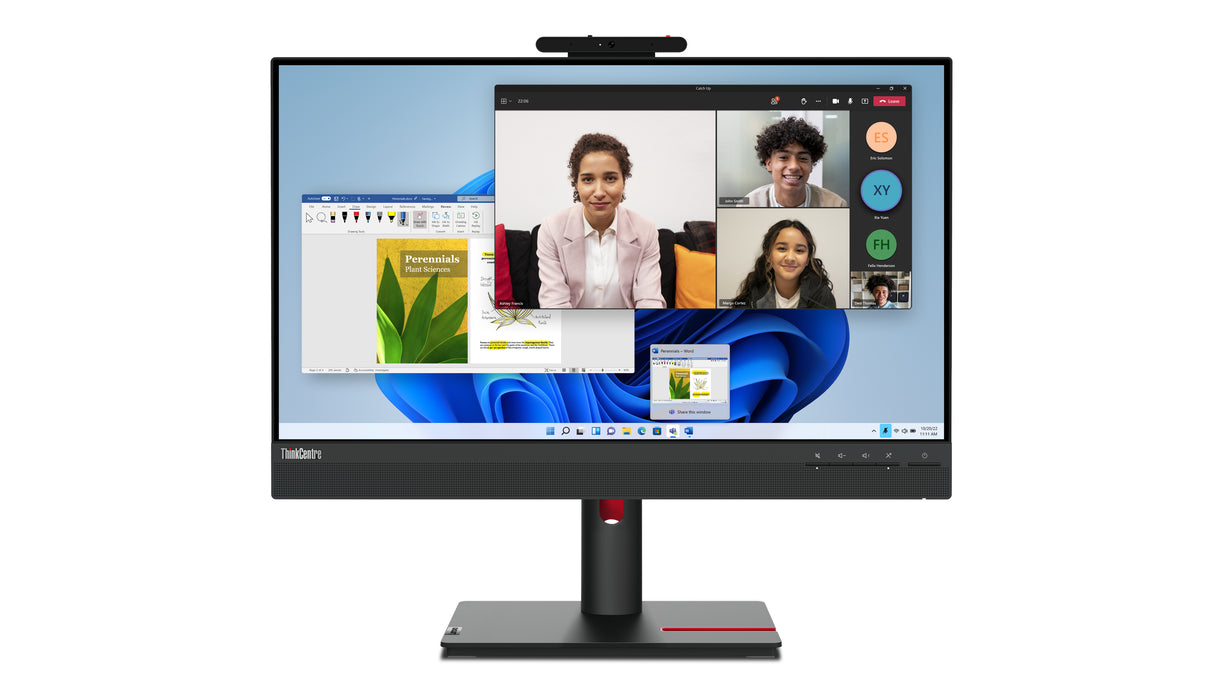

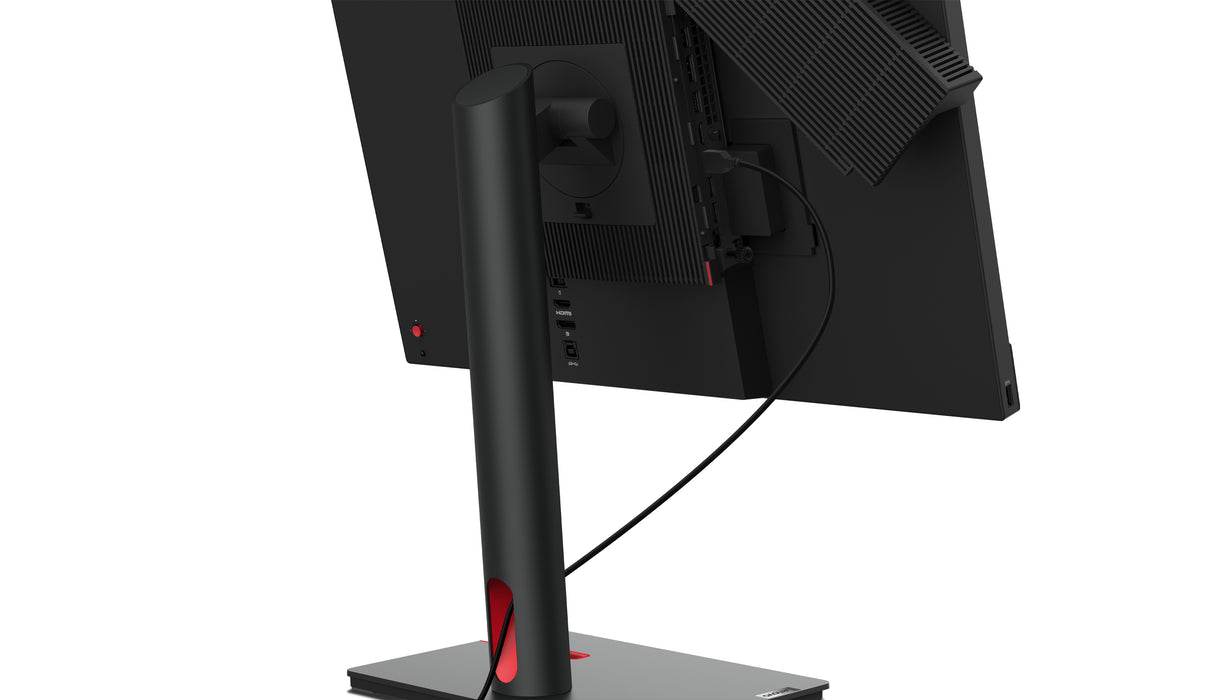

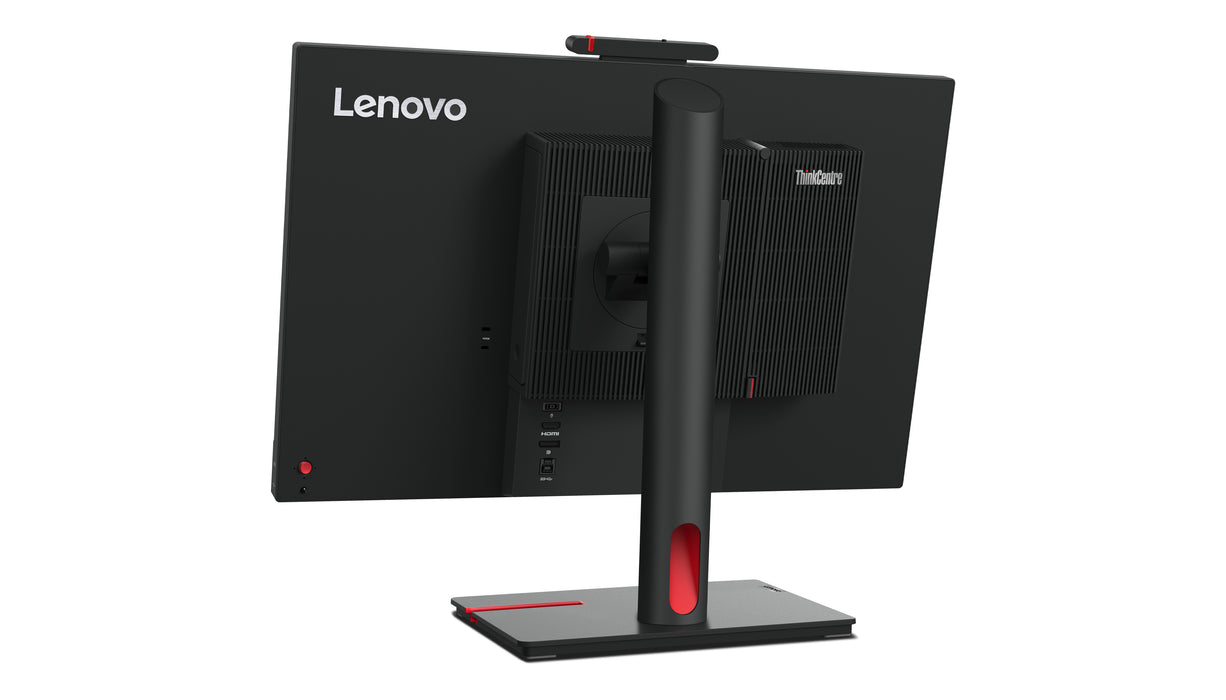

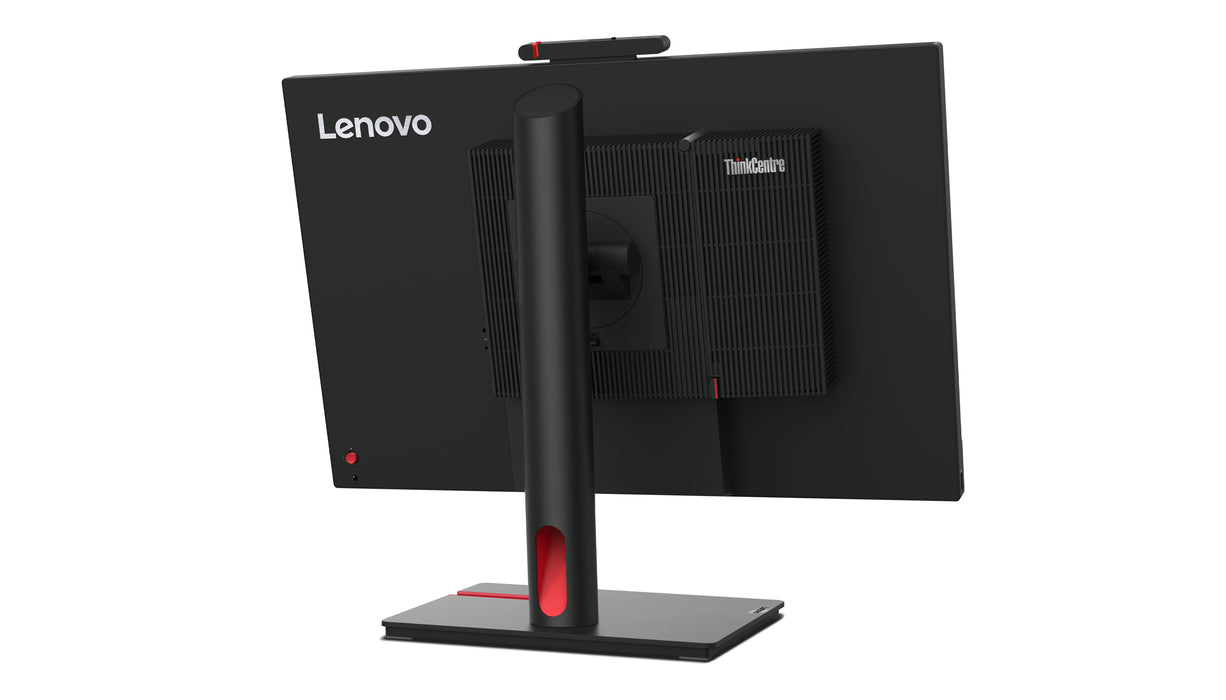

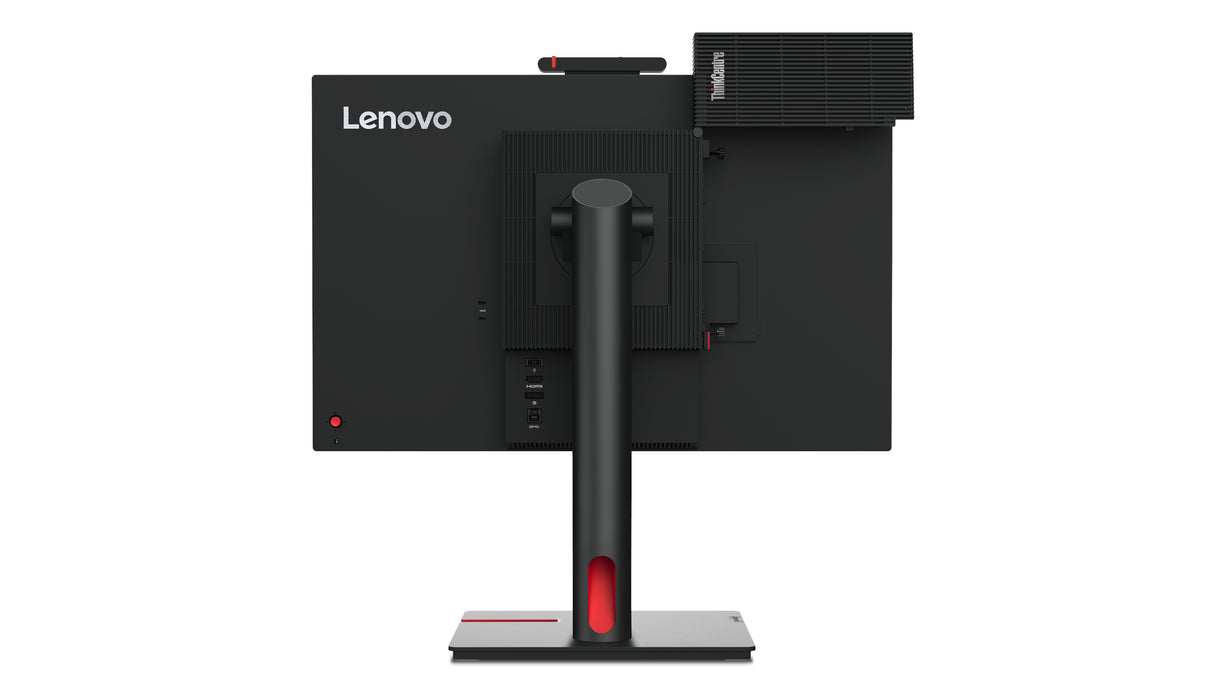

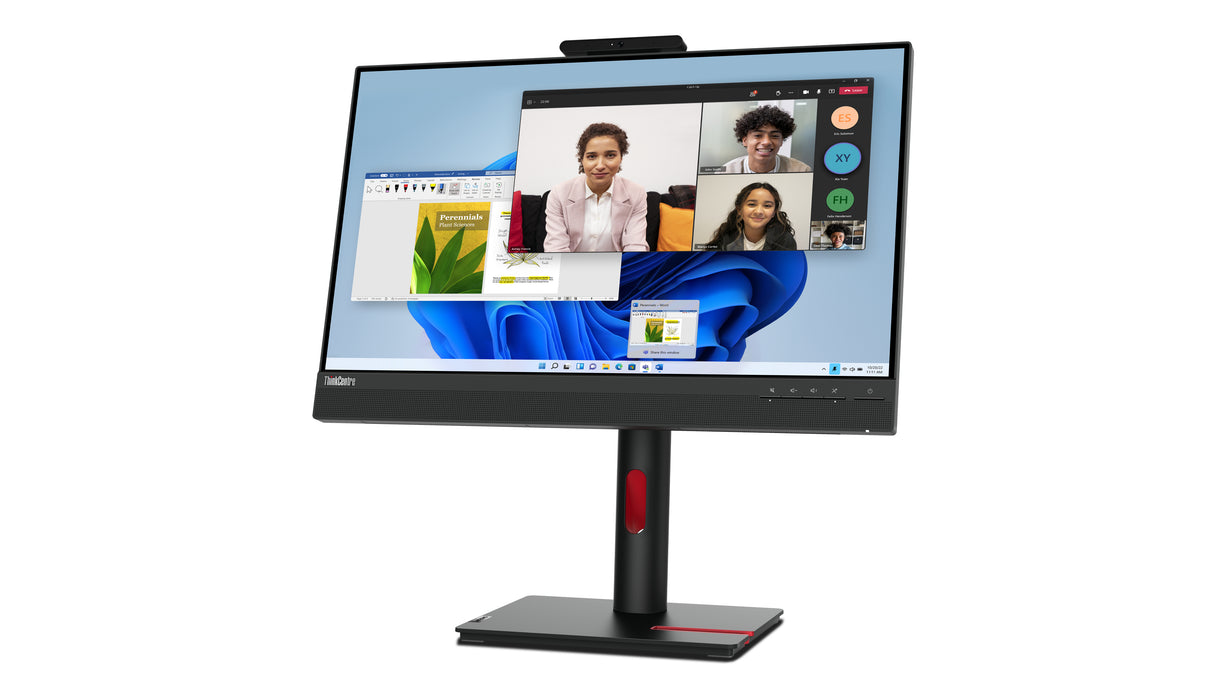

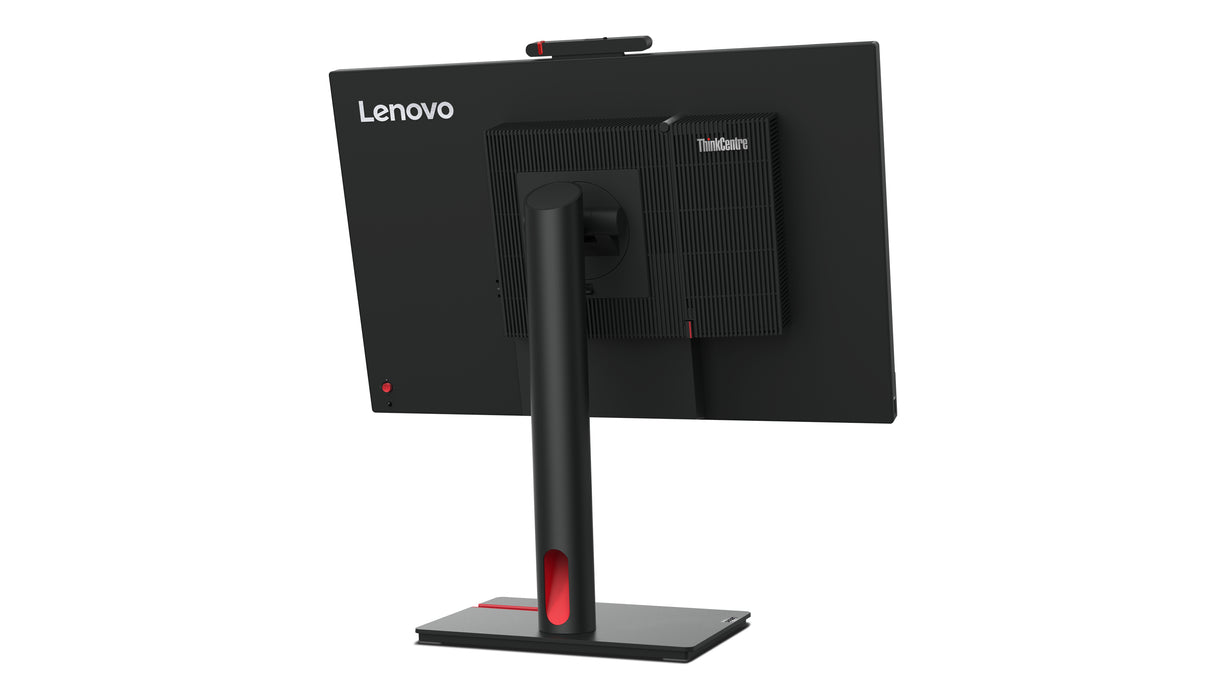

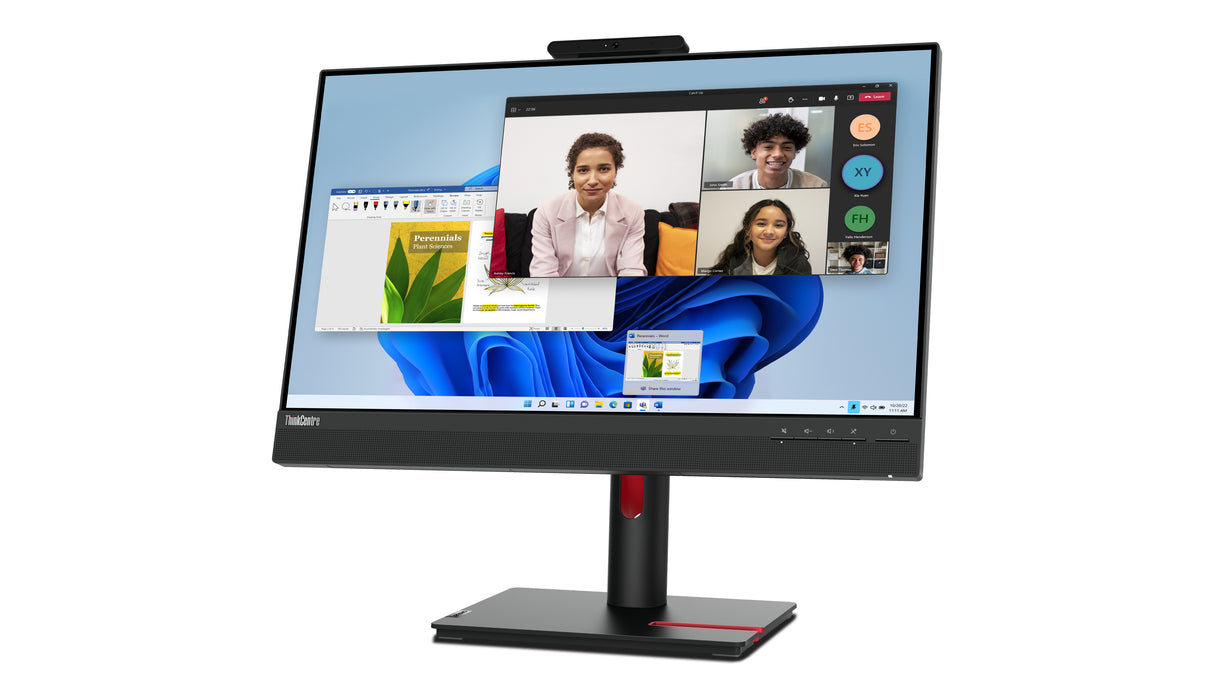

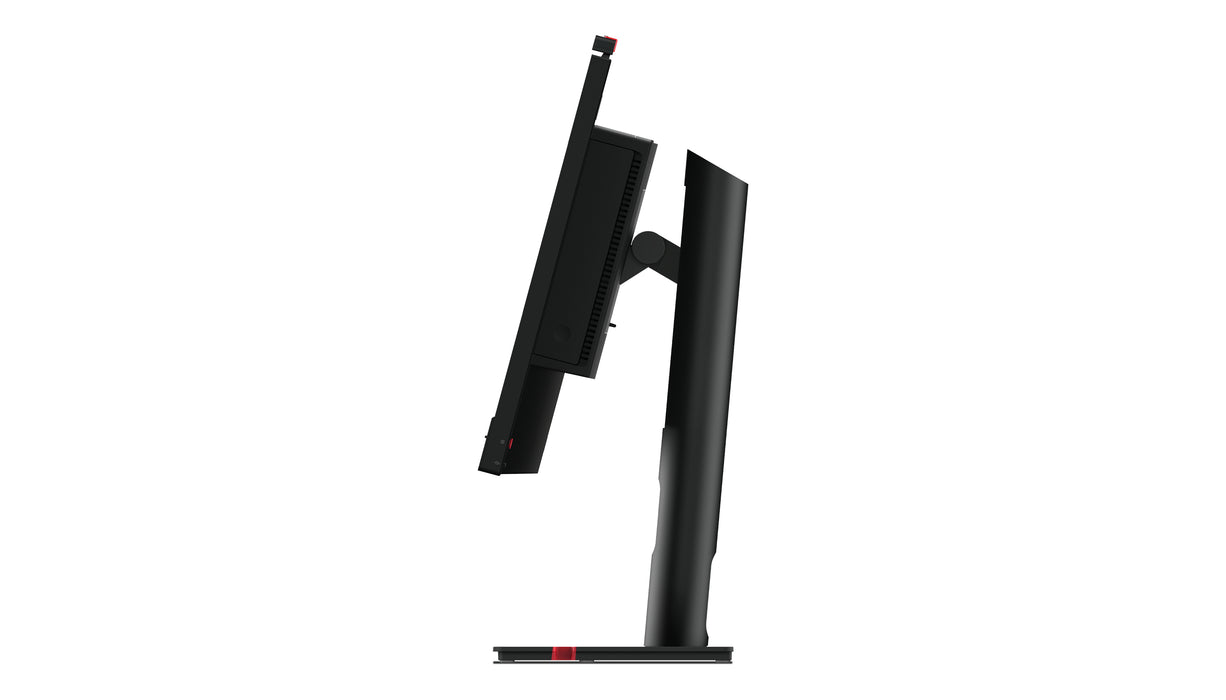

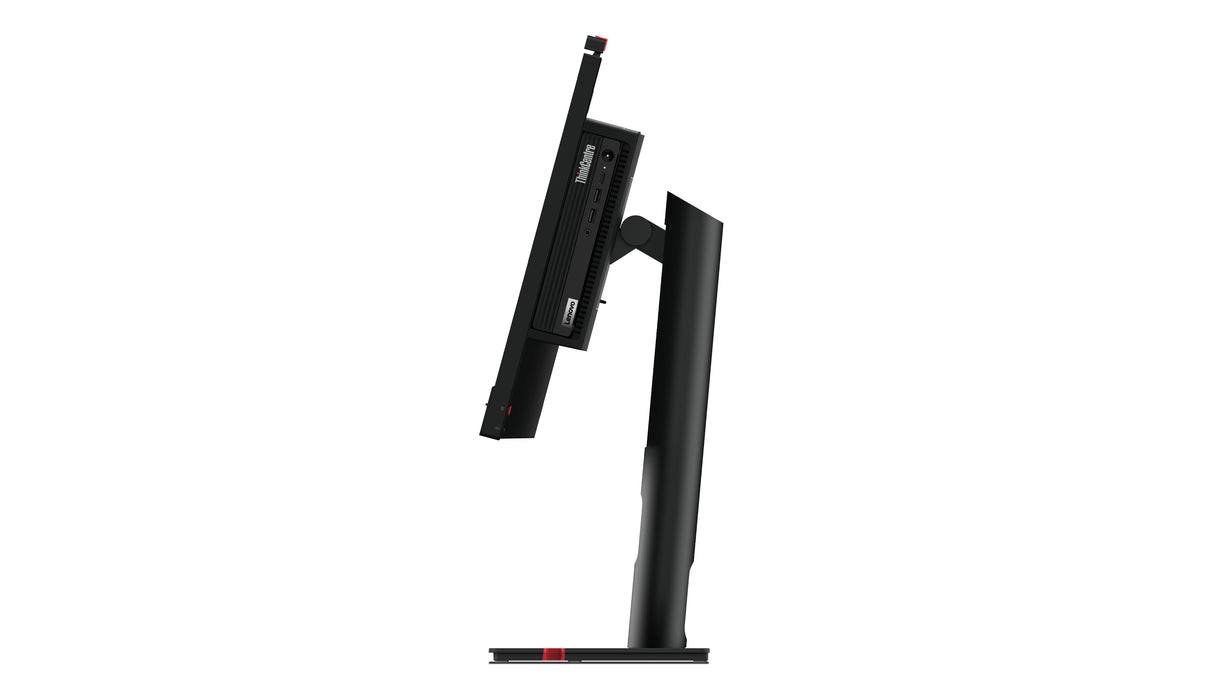

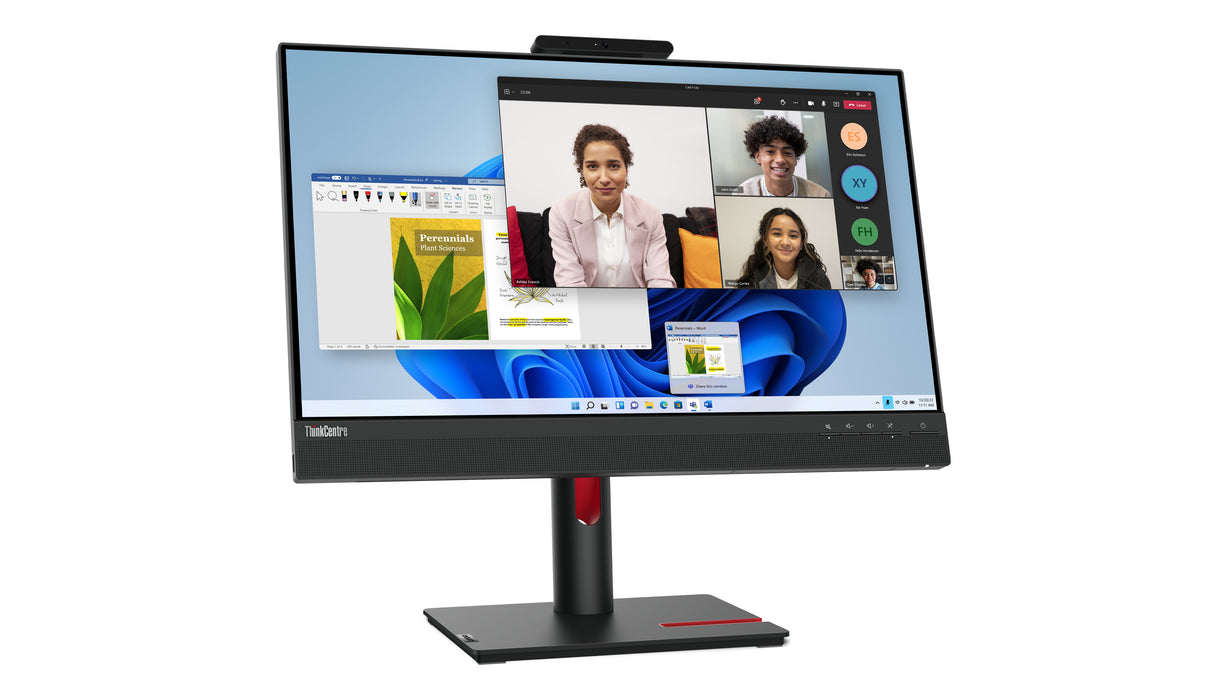

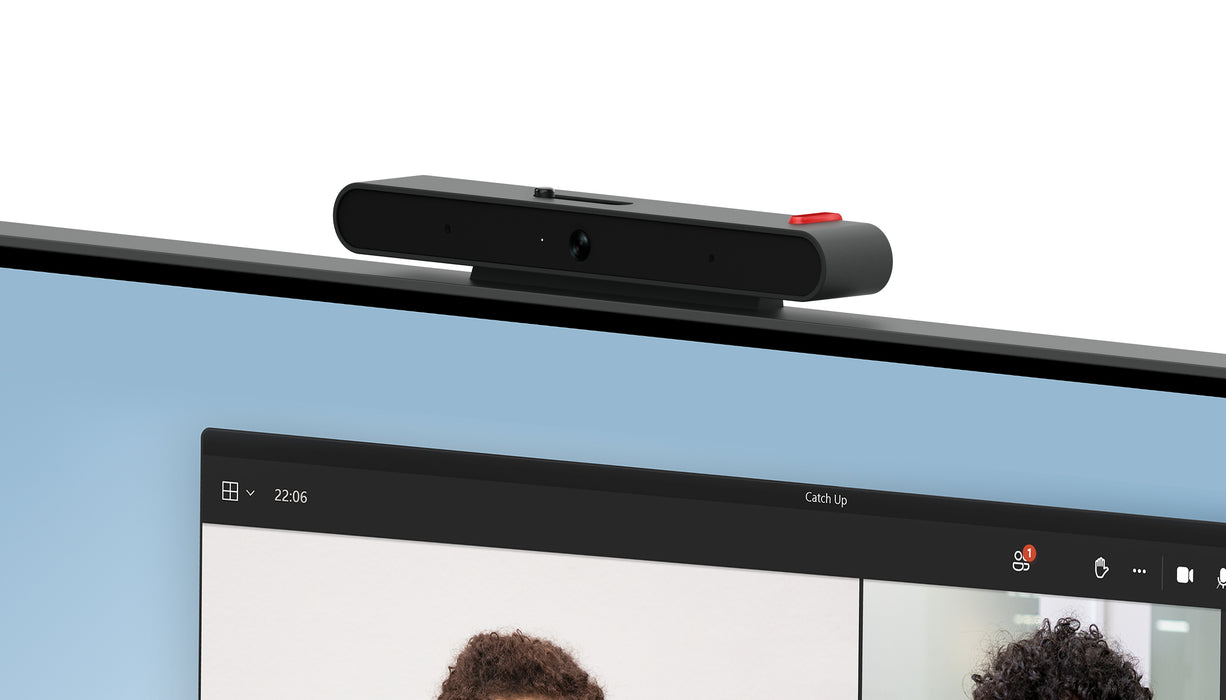

The ThinkCentre Tiny-In-One (TIO) 24 Gen 5 displays visuals and video content with great clarity on the 23.8-inch borderless In-Plane Switching FHD panel with 99% sRGB color support. It provides a complete working experience when paired with its VoIP features, a modular design which allows it to be attached with Lenovo’s range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th Gen. These can be effortlessly installed and housed in the dedicated slot at the back of the monitor, giving you a cable-free desk. Enjoy a consistent experience while using the classic installation mechanism to quickly and easily mount Tiny PCs to the monitor. Designed for efficient remote collaboration, it has a 1080p RGB webcam with a noise-cancellation microphone for i crystal-clear audio and video. Besides that, the Smart Traffic Light indicator indicates the status of an ongoing interaction or meeting, helping you avoid unforeseen distractions. Two integrated 3W user-facing speakers play the audio with amazing fidelity, making attending meetings a much more pleasant experience. Dedicated VoIP buttons allow you to easily mute or change the volume, making your remote meeting experience much more convenient. User-centric features like ThinkShutter allow you to cover your webcam lens for enhanced privacy and security. Recyclable packaging and optional CO2 offset service for minimal carbon emission footprint make this monitor environment-friendly. In addition to the Tiny PCs, you can also connect other laptops or towers using the HDMI and DP ports, and peripherals using the USB ports. The monitor’s Natural Low Blue Light technology works to reduce the harmful blue light without any color distortion during long working hours. Customize your workstation and easily adjust its various settings using the ThinkColour Software1. In a nutshell, the TIO 24 Gen 5 helps you get a clean, clutter-free desk, collaborate seamlessly and multitask efficiently to maximize productivity.
Display
Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Backlight type: W-LED
Display brightness (typical): 250 cd/m²
Response time: 6 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 3000000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Response time (fast): 4 ms
Pixel pitch: 0.275 x 0.275 mm
Pixel density: 93 ppi
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Colour depth: 8 bit
Colour gamut standard: sRGB
Colour gamut: 99%
sRGB coverage (typical): 99%
Performance
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 6 W
Feature: Built-in speaker(s)
Feature: Built-in microphone
Feature: Built-in camera
Design
Product colour: Black
Colour name: Raven Black
Feature: Detachable stand
Feet colour: Black, Red

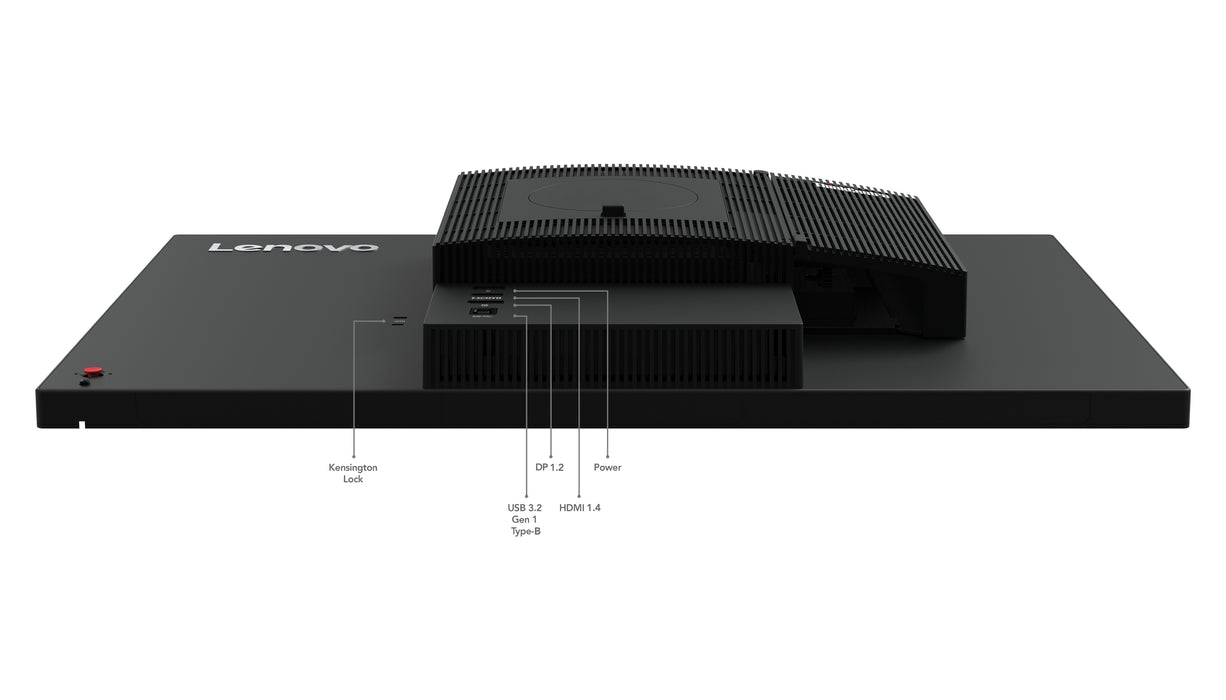

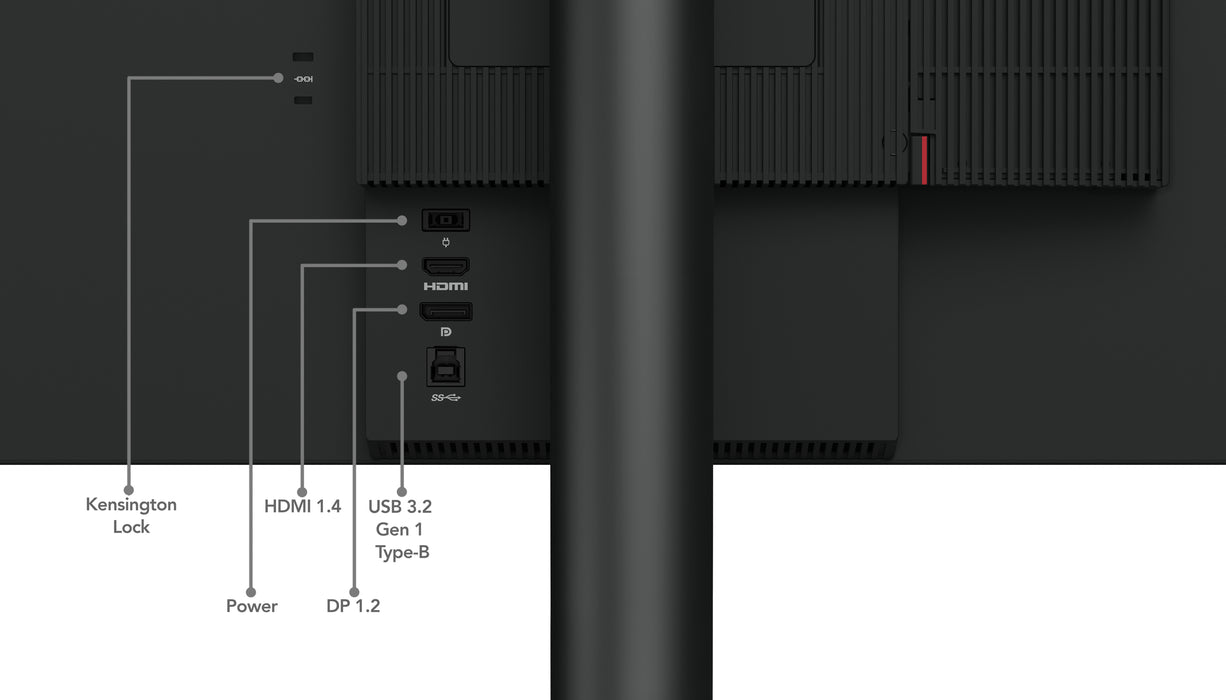

Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of upstream ports: 1

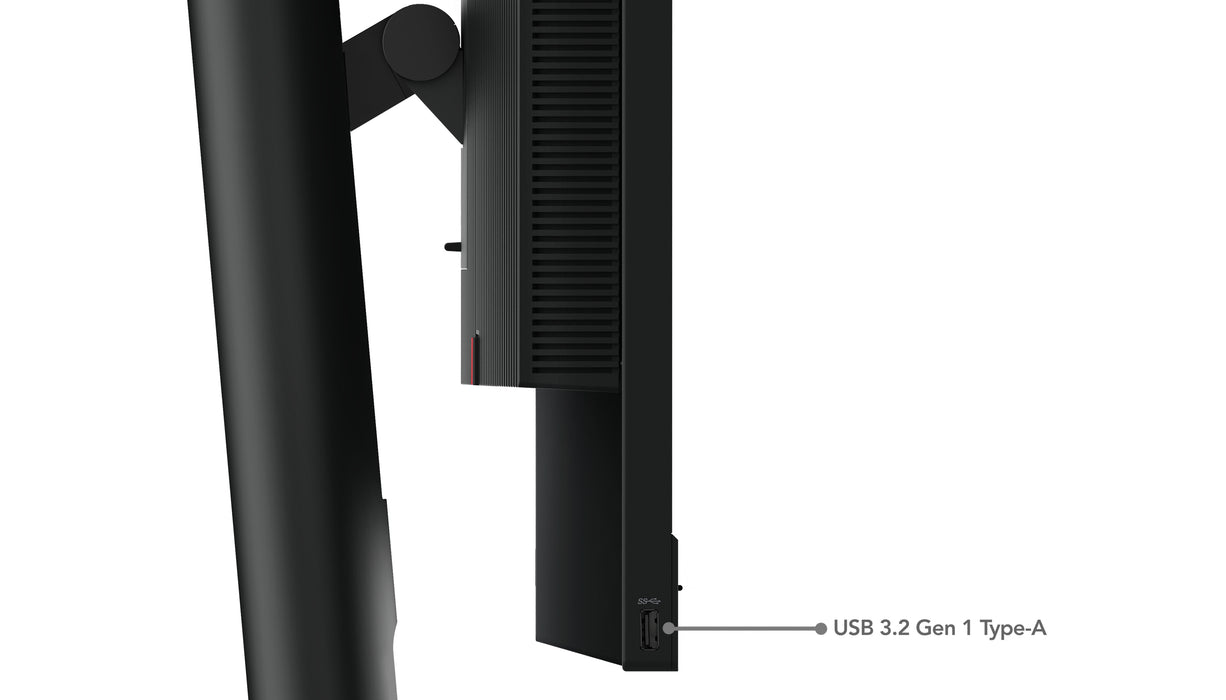

USB Type-A downstream ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: Built-in KVM switch
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15.5 cm
Feature: Pivot
Pivot angle: -5 - 90°
Feature: Swivelling
Swivel angle range: -45 - 45°

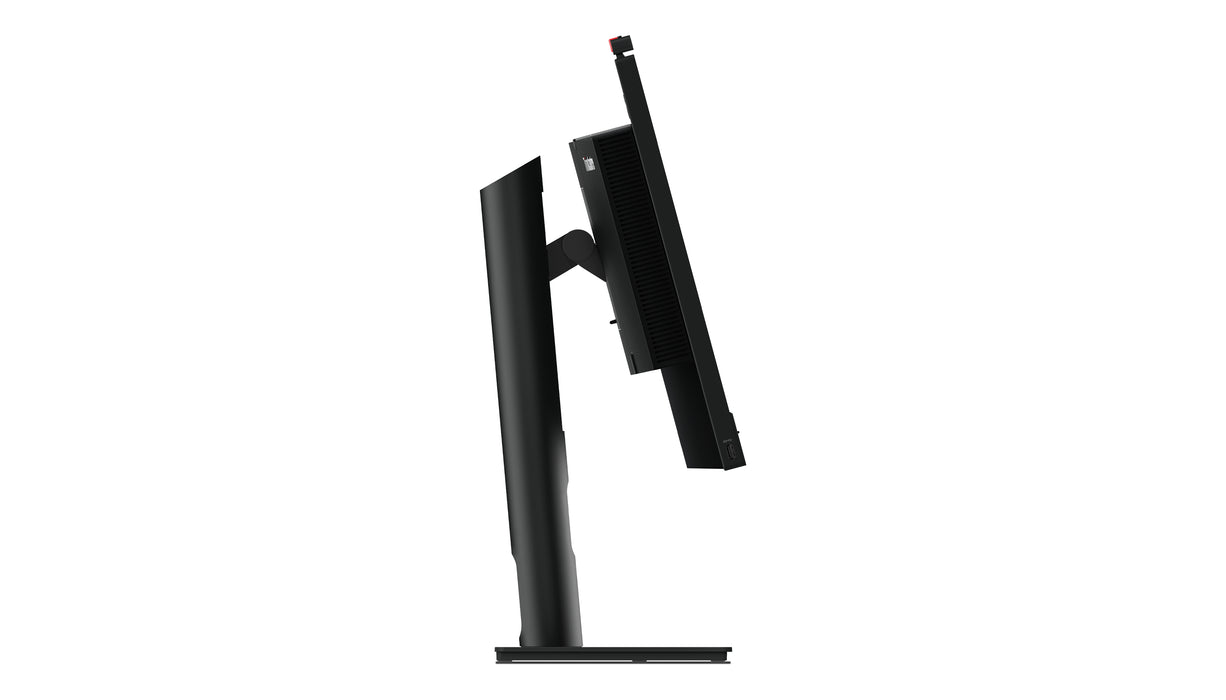

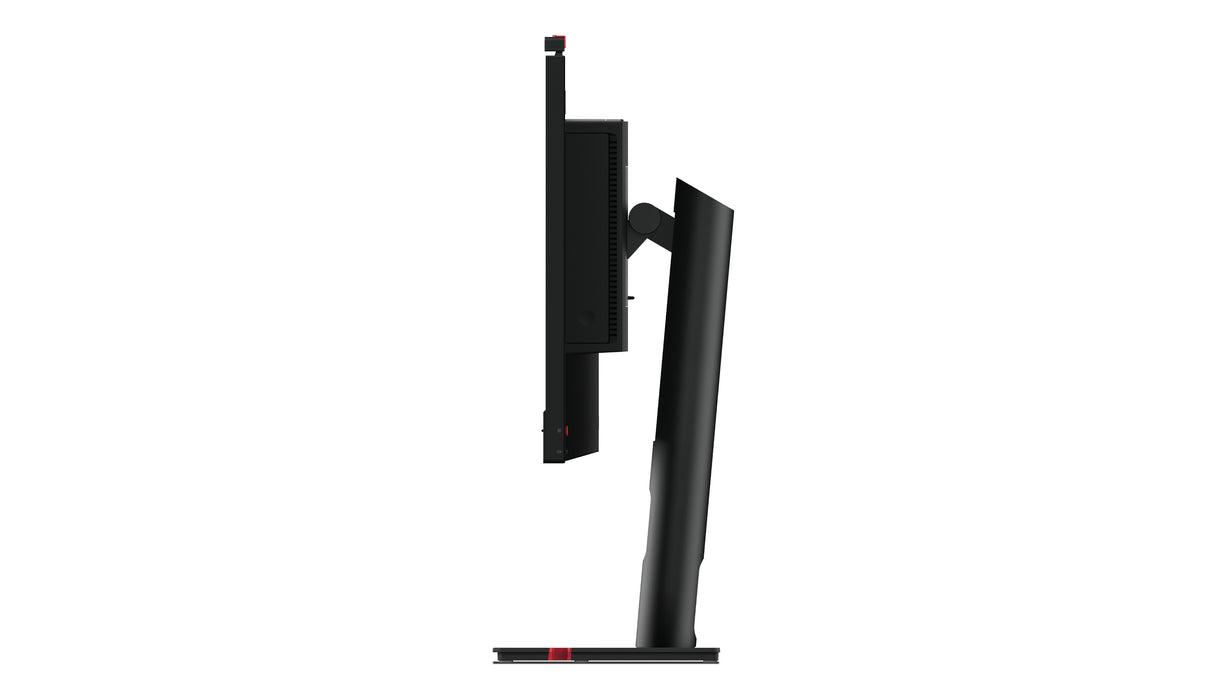

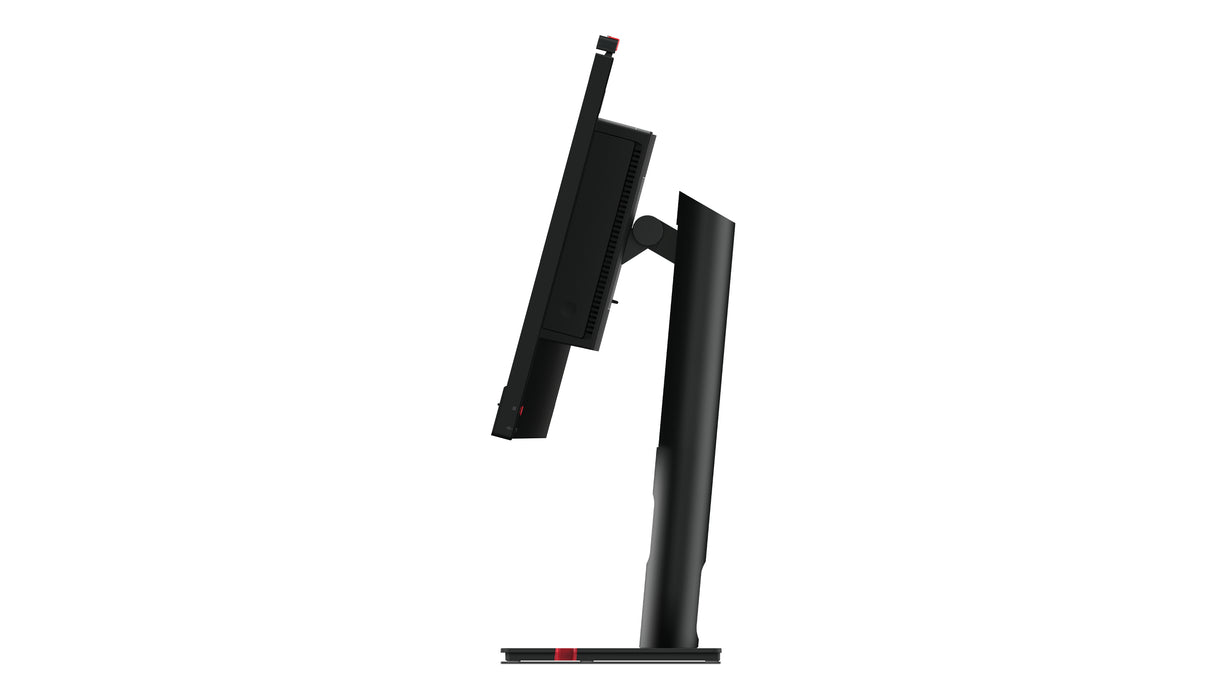

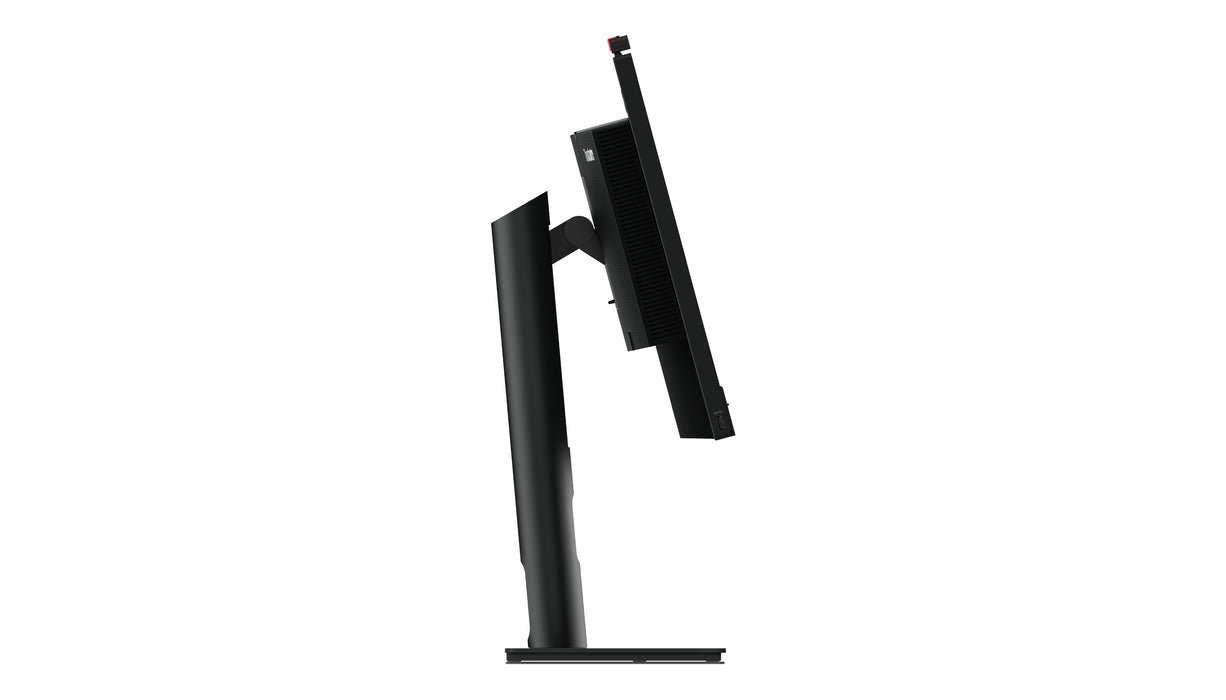

Feature: Tilt adjustment
Tilt angle range: -5 - 23.5°
Feature: On Screen Display (OSD)
Power
Power consumption (typical): 14 W
Power consumption (standby): 0.5 W
Power consumption (max): 34 W
Power consumption (off): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power supply type: External
Weight & dimensions
Width (with stand): 539.8 mm
Depth (with stand): 207.6 mm
Height (with stand): 539.6 mm
Weight (with stand): 6 kg
Width (without stand): 539.8 mm
Depth (without stand): 72.8 mm
Height (without stand): 367.6 mm
Weight (without stand): 3.7 kg
Bezel width (side): 2 mm
Bezel width (top): 2 mm
Bezel width (bottom): 4.6 cm
Packaging data
Package width: 620 mm
Package depth: 187 mm
Package height: 420 mm
Package weight: 9.5 kg
Packaging content
Feature: Stand included
Cables included: AC
Feature: Power adapter included
Feature: Quick start guide
Power cable length: 1 m
Other features
Compatible operating systems: Windows 10Windows 11
Lenovo ThinkCentre Tiny-In-One 24 Gen 5. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Lenovo
MBR CODE - 12NAGAT1EU
EAN - 0196804349824
