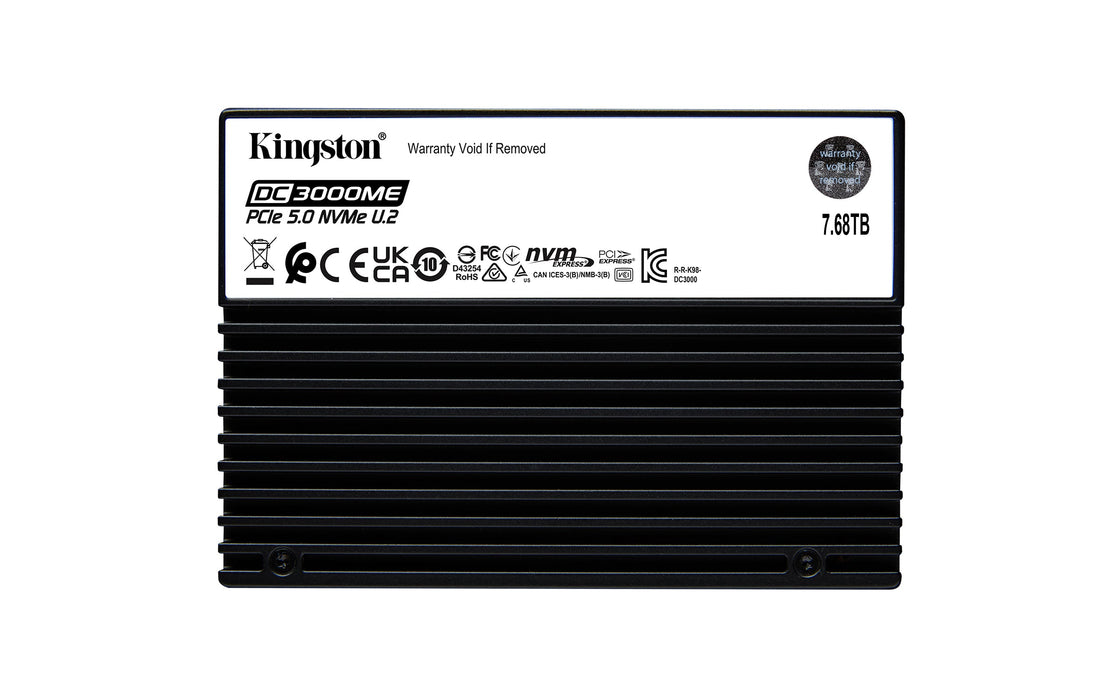

PCIe 5.0 NVMe U.2 for Server Applications
Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward-compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB and 15.36TB* capacities and is backed by Kingston's legendary technical support and a 5-year limited warranty.
Applications and workloads
DC3000ME is ideal for running a wide range of server applications and workloads including:
- AI
- HPC
- Cloud services
- Edge computing
- Software defined storage
- RAID
- General server use
Enterprise PCIe 5.0 performance
Delivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,800,000 read IOPS**.
Optimal storage and efficiency
High capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimized to handle a wide range of server workloads efficiently.
On-board Power Loss Protection (PLP)
Enterprise-class protection to reduce possibility of data loss or corruption on ungraceful power fails including NVMe-MI 1.2b out-of-band management, end-to-end data protection, TCG Opal 2.0.
AES 256-bit encryption
Secure sensitive data with AES 256-bit hardware-based encryption and TCG Opal 2.0.
Features
Security algorithms: 256-bit AES, TCG Opal 2.0
SSD capacity: 7.68 TB
SSD form factor: U.2
Interface: PCI Express 5.0
Feature: NVMe
Memory type: 3D eTLC
Component for: Server
Feature: Hardware encryption
Read speed: 14000 MB/s
Write speed: 10000 MB/s
Random read (4KB): 2800000 IOPS
Random write (4KB): 500000 IOPS
Read latency: 10 µs
Write latency: 70 µs
Feature: Power loss protection
Mean time between failures (MTBF): 2000000 h
Market segment: Server
Power
Power consumption (read): 8.2 W
Power consumption (write): 24 W
Power consumption (idle): 8 W
Weight & dimensions
Width: 69.8 mm
Depth: 100.5 mm
Height: 14.8 mm
Weight: 151.3 g
Packaging data
Package width: 129.5 mm
Package depth: 16.8 mm
Package height: 184.2 mm
Package weight: 180.44 g
Operational conditions
Operating temperature (T-T): 0 - 70 °C
Non-operating vibration: 10 G
Logistics data
Country of origin: Malaysia
Master (outer) case width: 135.9 mm
Master (outer) case length: 203.2 mm
Master (outer) case height: 69.8 mm
Master (outer) case gross weight: 1.16 kg
Products per master (outer) case: 6 pc(s)
Kingston Technology 7.68TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD. SSD capacity: 7.68 TB, SSD form factor: U.2, Read speed: 14000 MB/s, Write speed: 10000 MB/s, Component for: Server
Kingston
MBR CODE - SEDC3000ME/7T6
EAN - 0740617347852
