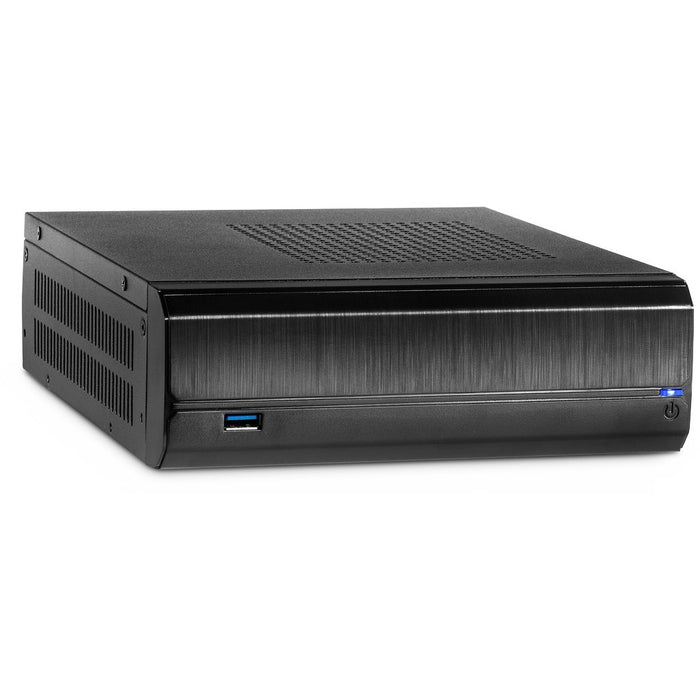

JX-500 – Mini-ITX from Inter-Tech - modern, stylish and practical.
The JX-500 is a case for Mini-ITX mainboards with a brushed front panel and a USB 3.0 front connector. The standard DC converter board supports external 12V power supplies up to max. 10A (= 120W) and thus offers the possibility of configuring powerful systems in the smallest of spaces.
The JX-500 also offers the option of mounting it on the VESA mount behind the monitor using the integrated feet, or directly under the desk using the rails provided for attachment to the wall.
Design
Form factor: Mini Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ITX
Number of 2.5" bays: 1
Maximum CPU cooler height: 4.5 cm
Certification: CE, RoHS
Power supply
Feature: Power supply included
Feature: ATX power connector (20+4 pin)
Number of SATA connectors: 2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Storage
Supported HDD sizes: 2.5"
Weight & dimensions
Width: 200 mm
Depth: 240 mm
Height: 65 mm
Weight: 860 g
Packaging data
Package width: 240 mm
Package depth: 105 mm
Package height: 275 mm
Package weight: 1.2 kg
Logistics data
Harmonized System (HS) code: 84733080
Products per master (outer) case: 10 pc(s)
Inter-Tech JX-500. Form factor: Mini Tower, Type: PC, Product colour: Black. Supported HDD sizes: 2.5". Width: 200 mm, Depth: 240 mm, Height: 65 mm. Package width: 240 mm, Package depth: 105 mm, Package height: 275 mm. Products per master (outer) case: 10 pc(s)
Inter-Tech
MBR CODE - 88881283
EAN - 4260455641937
