Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Maximum internal memory supported by processor: 64 GB
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 64 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Storage controllers
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
DirectX version: 12.1
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: EPS power connector (8-pin)
Feature: TPM connector
Serial port headers: 1
Feature: RGB LED pin header

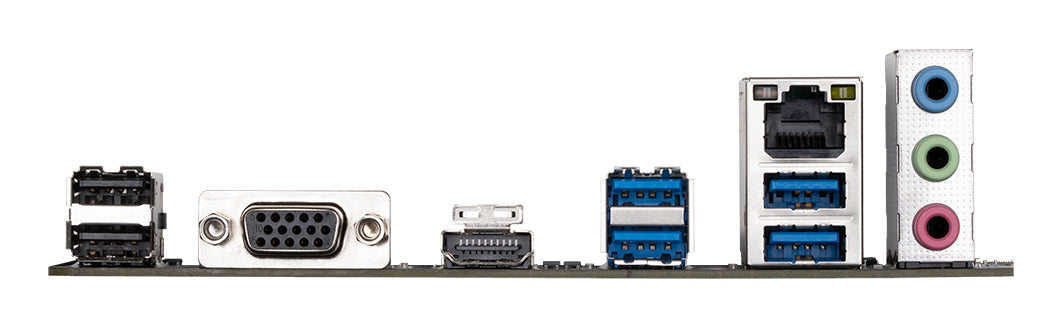

Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.4
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Features
Motherboard chipset: Intel B760 Express
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Brown
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 265 mm
Package depth: 265 mm
Package height: 54 mm
Package weight: 825 g
Weight & dimensions
Width: 230 mm
Depth: 215 mm
Height: 35 mm
Packaging content
Feature: Batteries included
Technical details
Warranty period: 3 year(s)

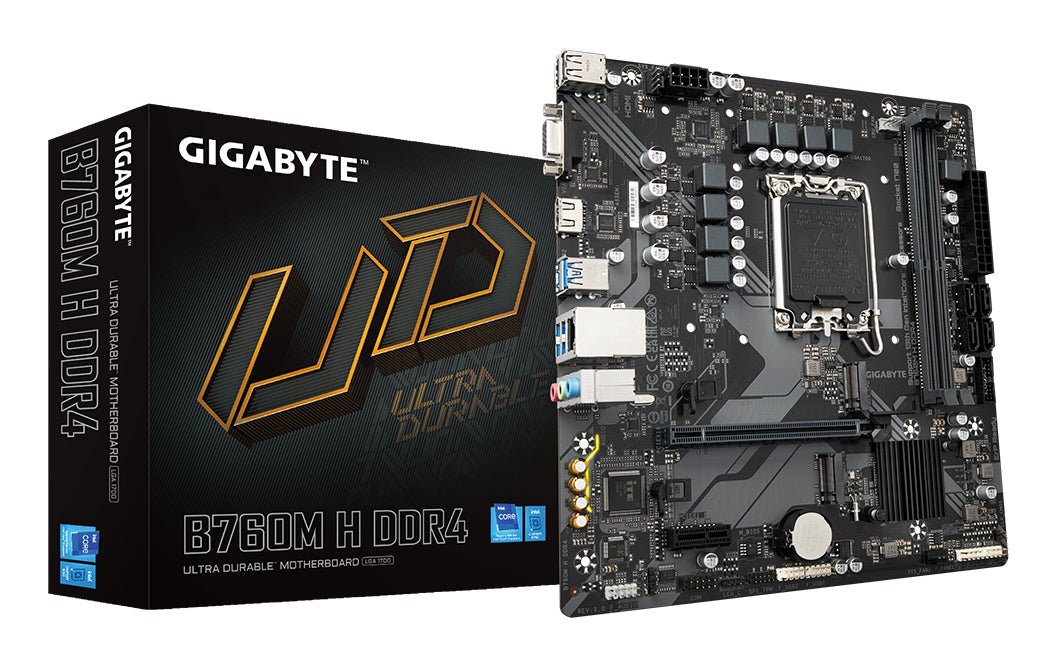

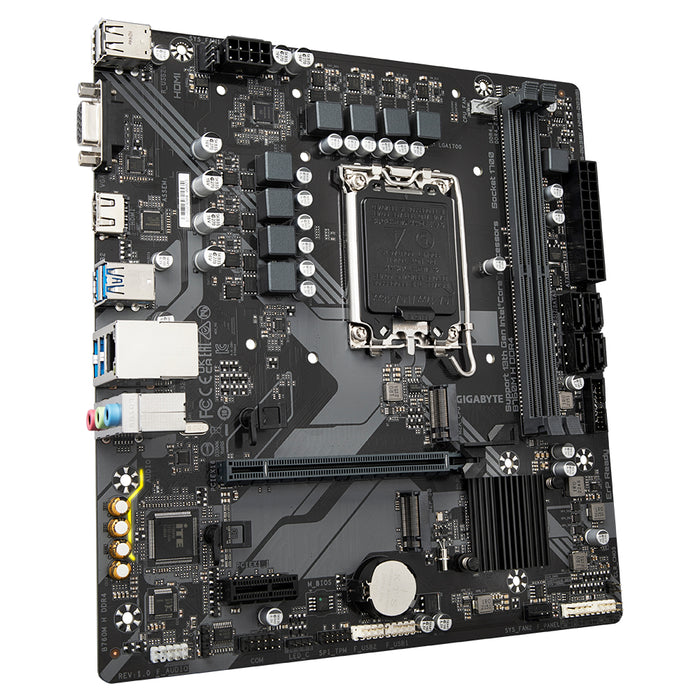

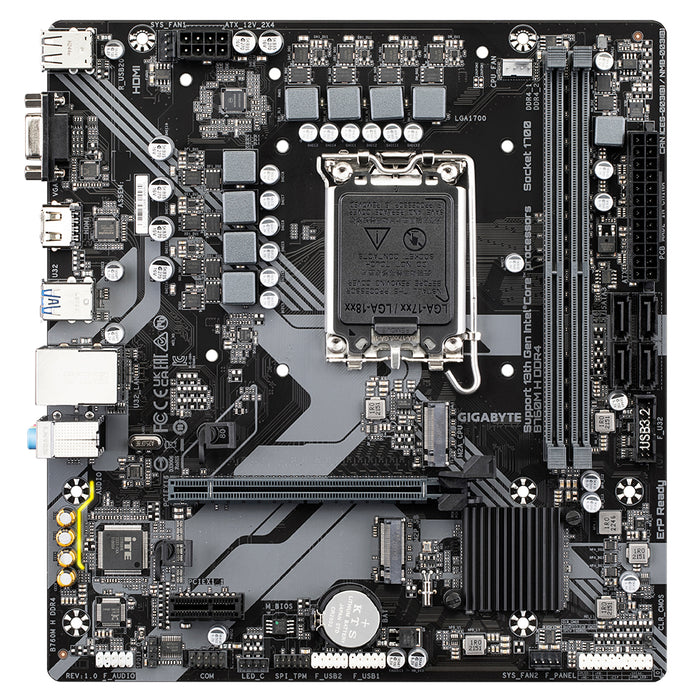

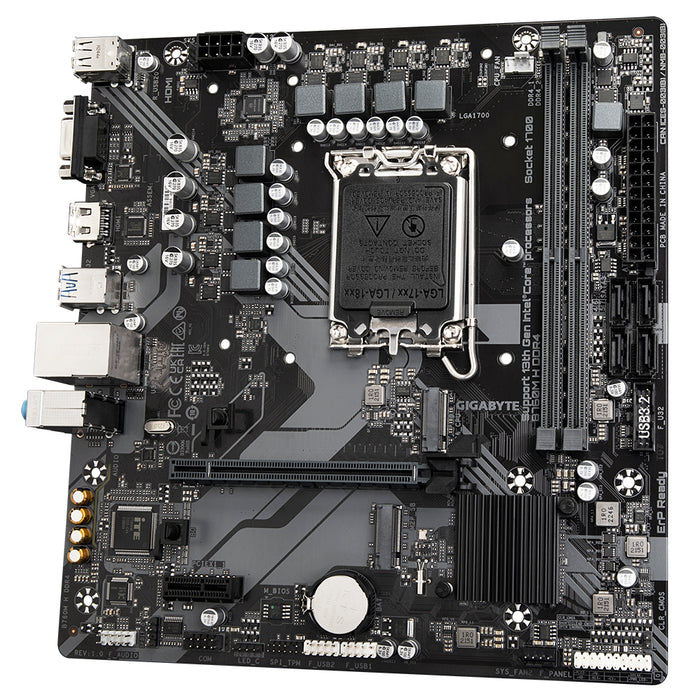

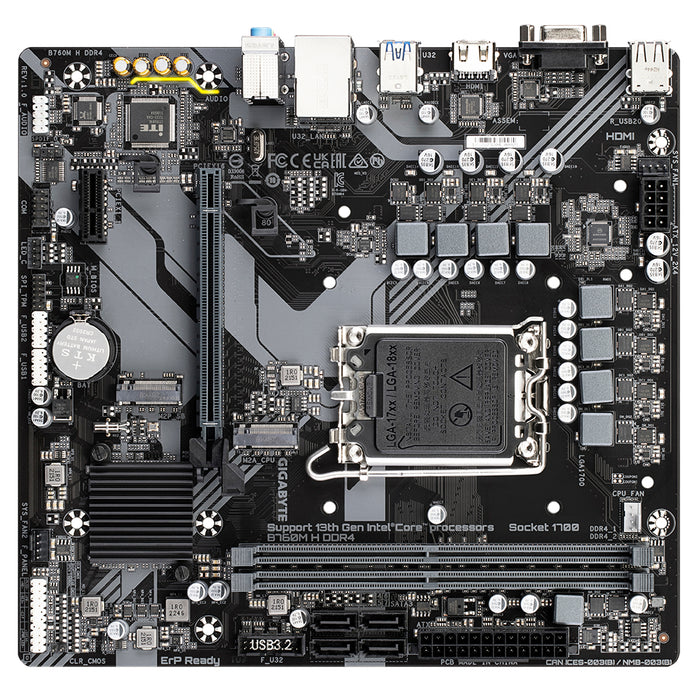

GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Gigabyte
MBR CODE - B760M H DDR4
EAN - 4719331854645
