Power
Total power: 1200 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power Factor Correction (PFC) type: Active
Hold time: 16 ms
Efficiency: 90%
Power Good signal delay range: 100 - 150 ms
Power protection features: No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 8
SATA power cable length: 450,570,690,810 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 930 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: ATX power connector (20+4 pin)
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Certificates
Compliance certificates: RoHS, WEEE
Certification: CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS
Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 86 mm
Technical details
Sustainability certificates: ErP, Triman

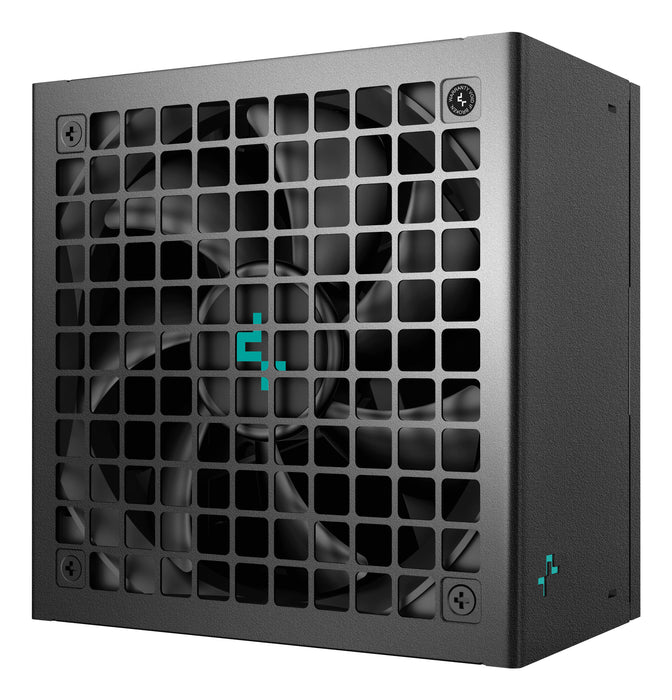

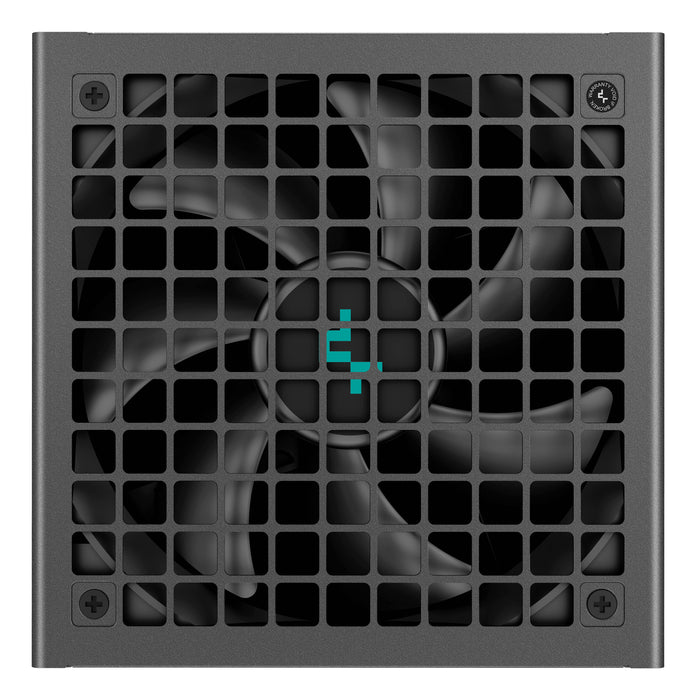

Gamer Storm PN1200M. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,570,690,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: RoHS, WEEE, Certification: CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS
Deepcool
MBR CODE - R-PNC00M-FC0B-JGEU
EAN - 6933412741404
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 450,570,690,810 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 930 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Compliance certificates | RoHS, WEEE |
| Certification | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Sustainability certificates | ErP, Triman |
