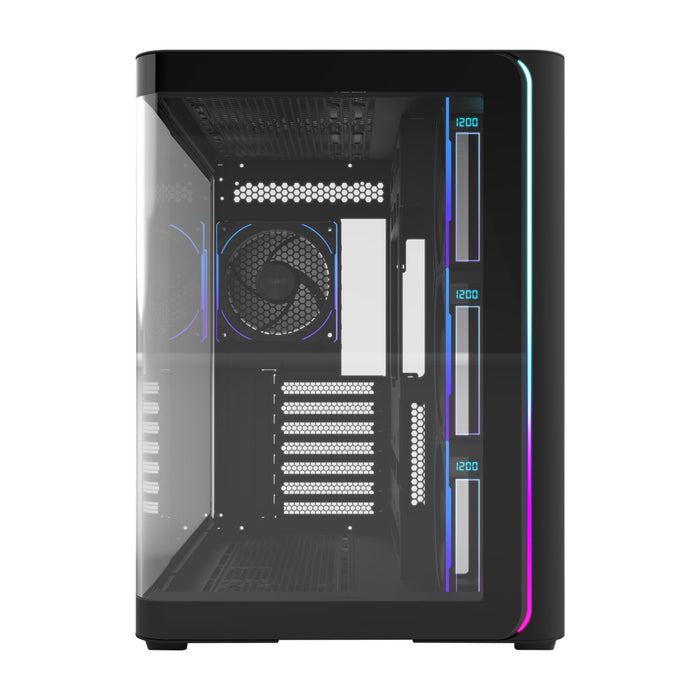

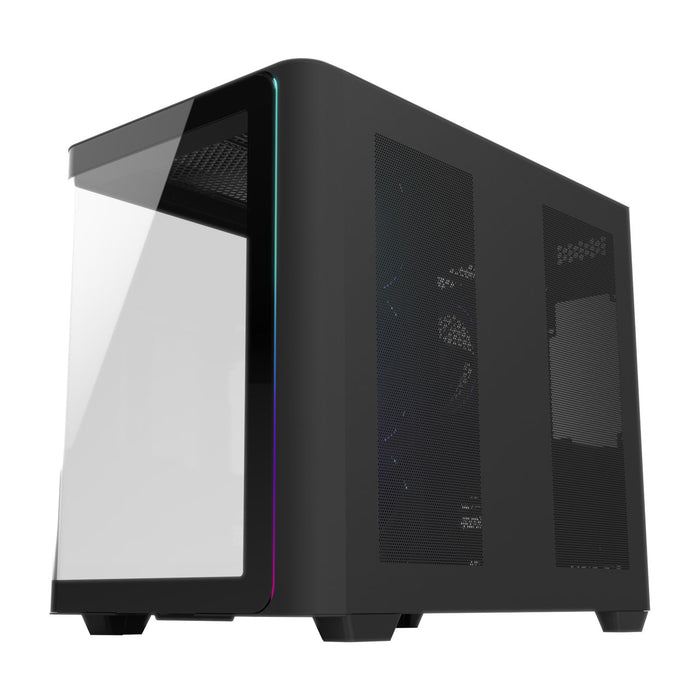

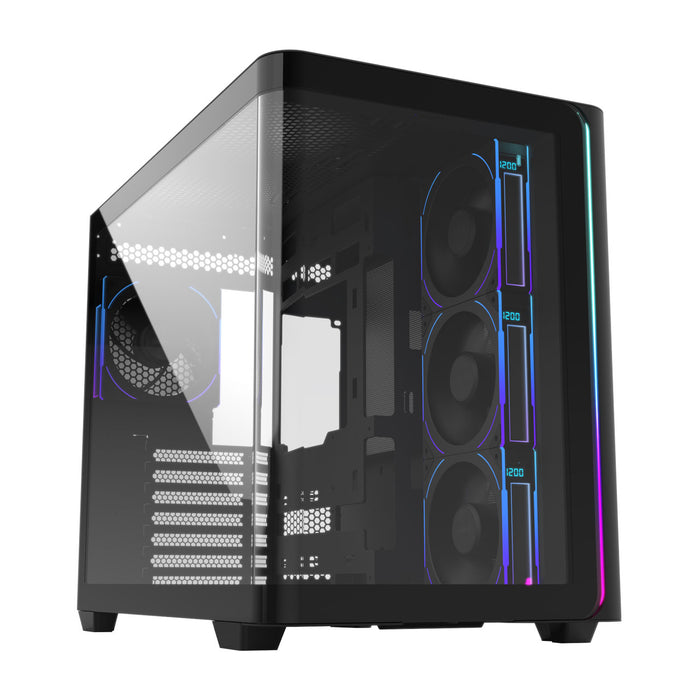

The M580 PLUS features a complete curved tempered glass panel, offering an panoramic view from front to side, delivering a seamless, perfect visual immersion.
The curved glass of the M580 PLUS uses the most advanced manufacturing process, enhancing both transparency and structural strength.
M580 PLUS not only focuses on aesthetics but also prioritizes your safety.
Modular Daisy Chain Fans with Speed Display
Built on the foundation of the M580, the M580 PLUS is fully equipped with daisy chain modular block fans, continuing the cable-free experience.
In addition to ARGB lighting and infinity mirror fan, it features a digital display screen for fan speed and long-lasting dual ball bearing, offering both aesthetics and enduring performance!
Still Struggling to Choose a Cooler?
The M580 PLUS supports liquid cooling radiators ranging from 240 to 360 mm. Additionally, it supports air coolers up to 160 mm in height, covering most types available on the market.
We Understand Your Demands for Aesthetics
The M580 PLUS fully supports the next-generation back-connect motherboard, eliminating the hassle of cable management, as all cables are hidden on the other side, out of view.
With its seamless curved glass and modular block fans, it delivers a cable-free, flawless visual experience.
Pursuing Performance, We Think Alike
The M580 PLUS is equipped with four high-performance 30mm-thick fans, including three reverse fans, enhancing overall airflow for smoother and more stable performance. It easily handles any high-end setup with ease.
Every Precious Memory, Store Without Limits
The M580 PLUS supports up to 2 x 3.5" HDDs and 3 x 2.5" SSDs (shared with SSD slots), allowing for flexible expansion of your storage devices anytime.
| Material | Glass, SPCC |
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 7 |
| Tempered glass panel(s) | Yes |
| Reset button | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 44.5 cm |
| Maximum PSU length | 24 cm |
| Power supply included | No |
| Audio input | Yes |
| Audio output | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Fan speed control | Yes |
| Side fans installed | 3x 120 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120,140 mm |
| Bottom radiator sizes supported | 360 mm |
| Top radiator sizes supported | 360 mm |
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
| Width | 285 mm |
| Depth | 460 mm |
| Height | 398 mm |
| Weight | 7.5 kg |
| Material thickness | 0.7 mm |
