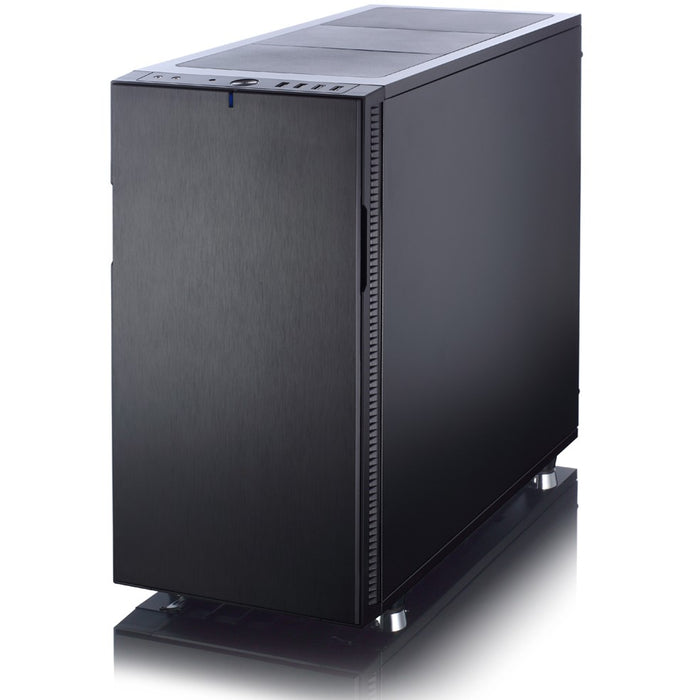

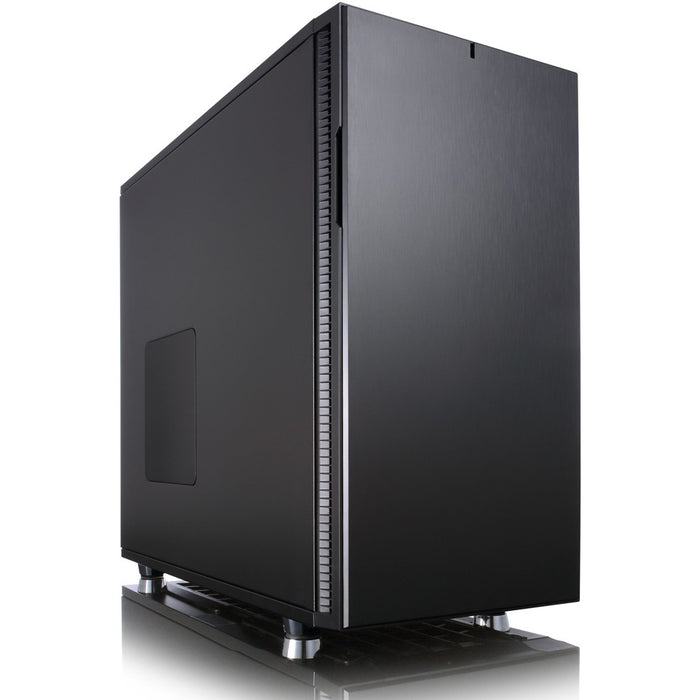

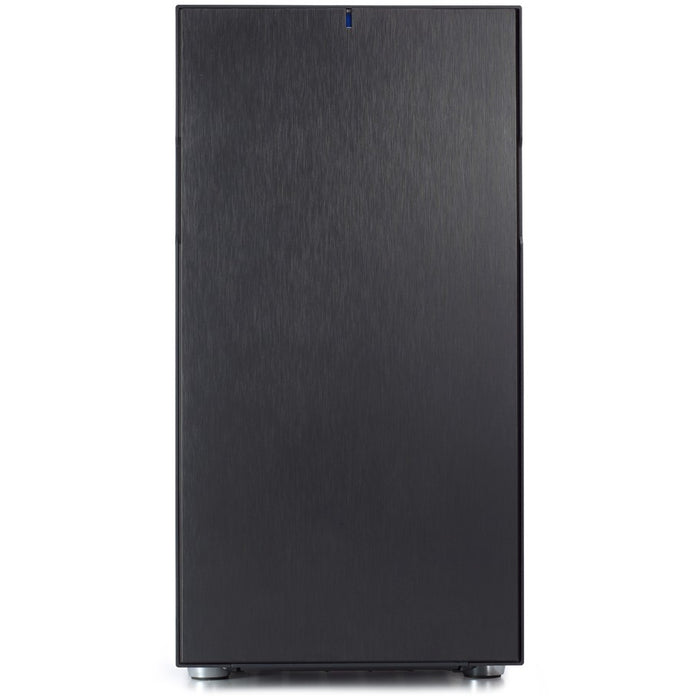

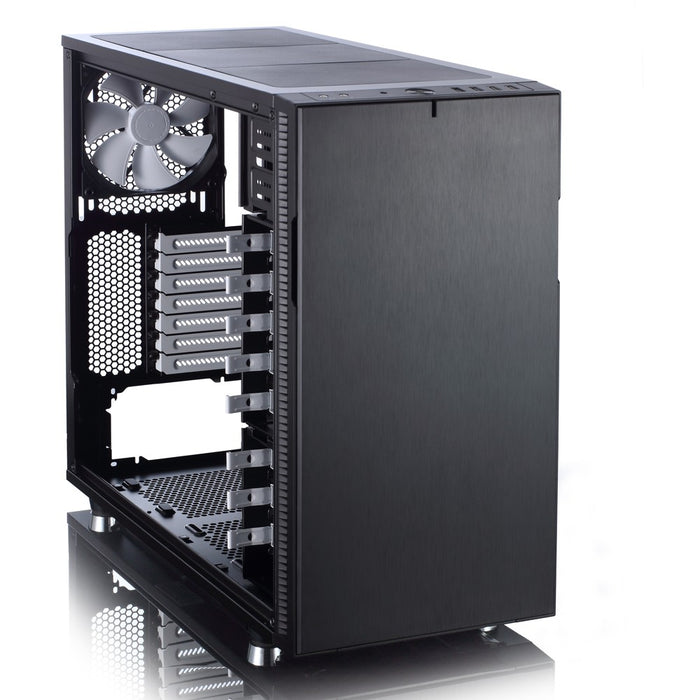

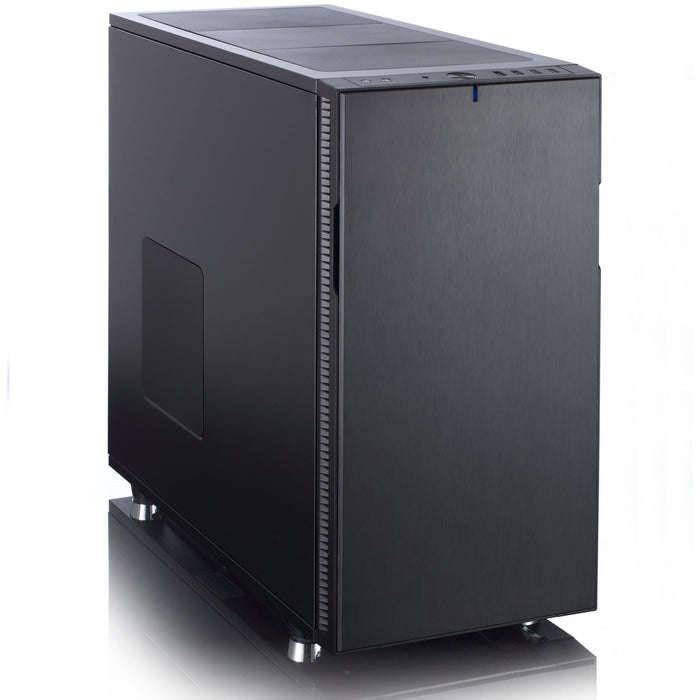

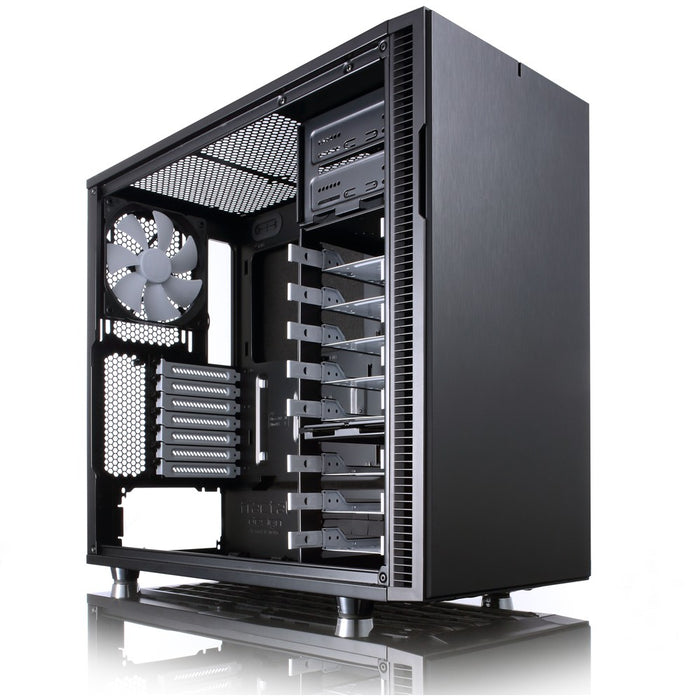

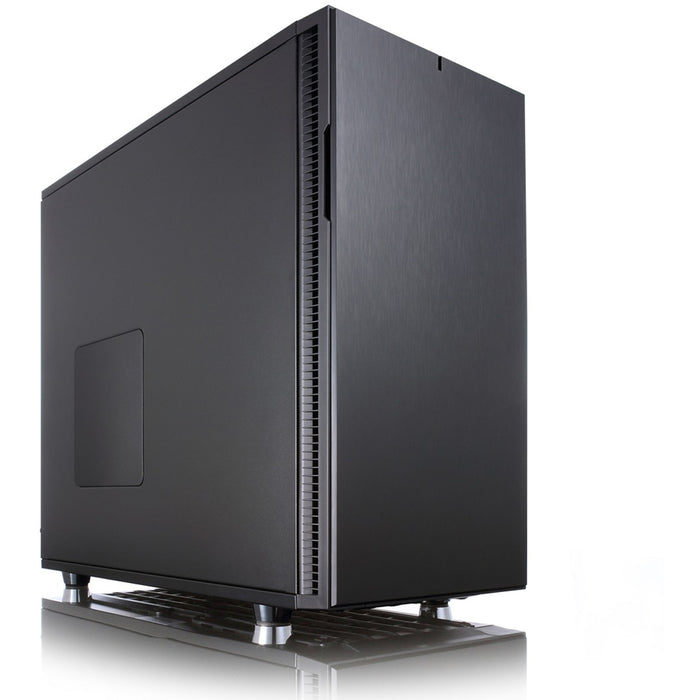

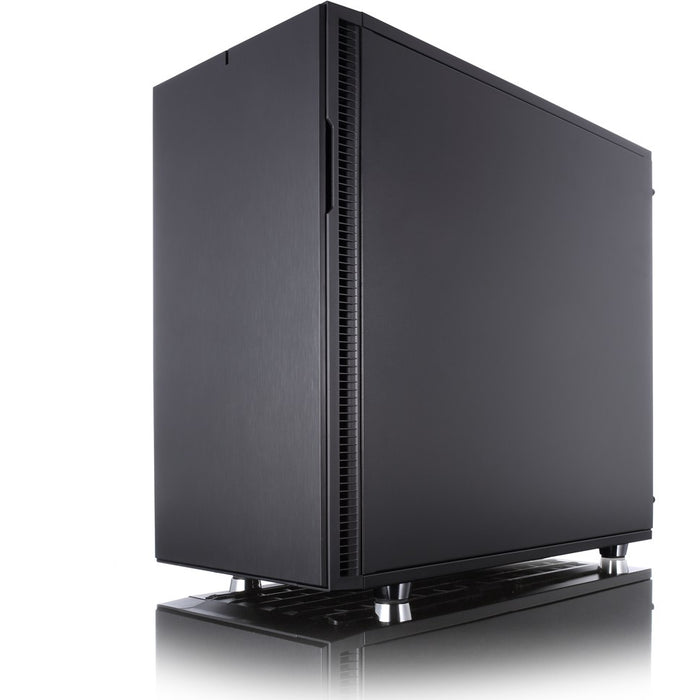

The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.

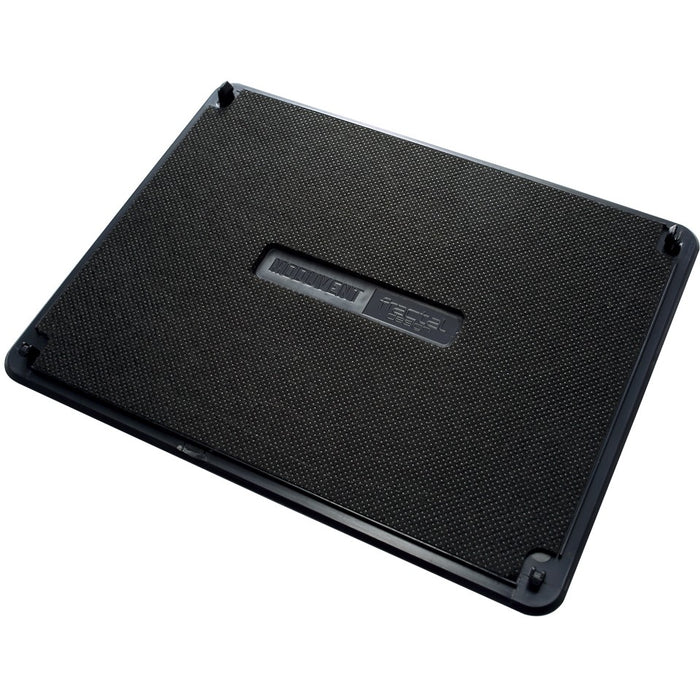

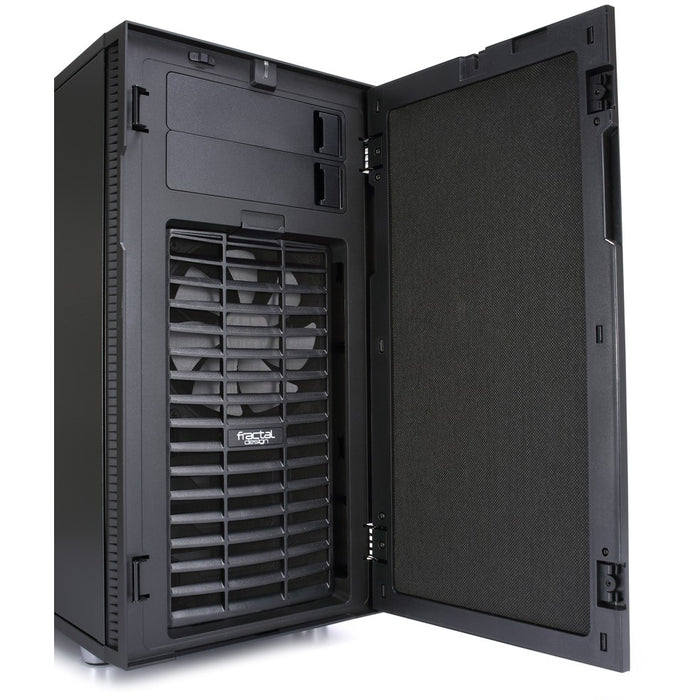

The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, ModuVent™ fan vent covers and finely tuned Dynamic Series fans.

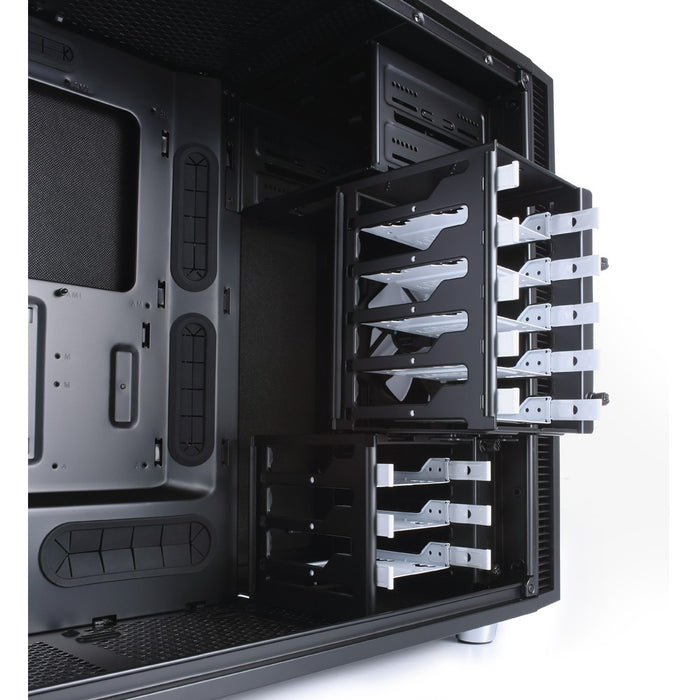

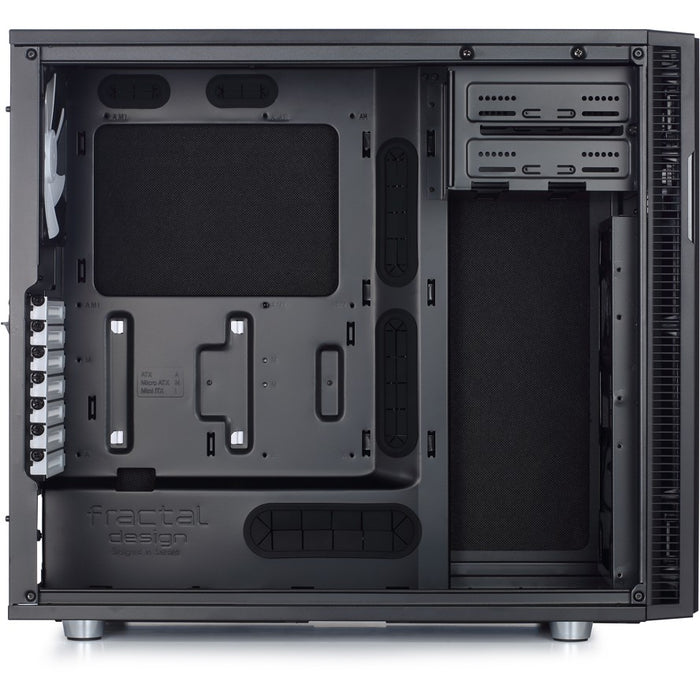

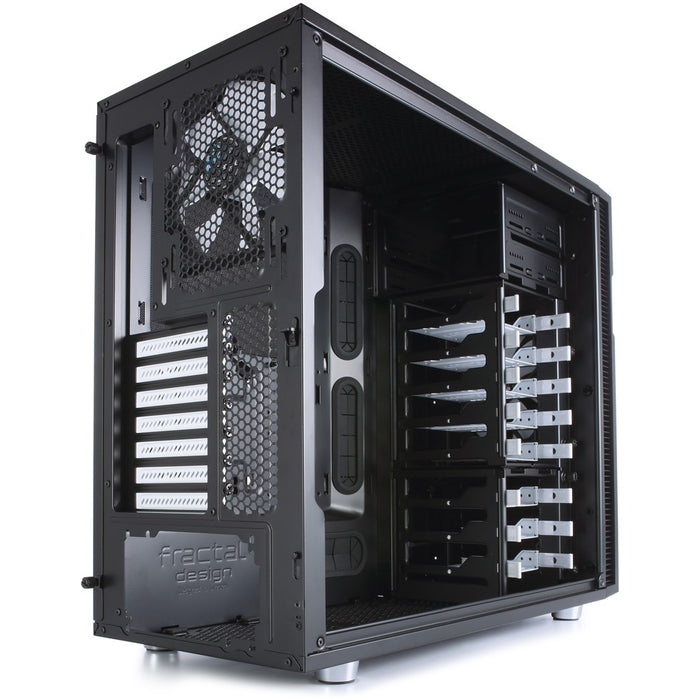

The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives and all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your demand.
Design
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX

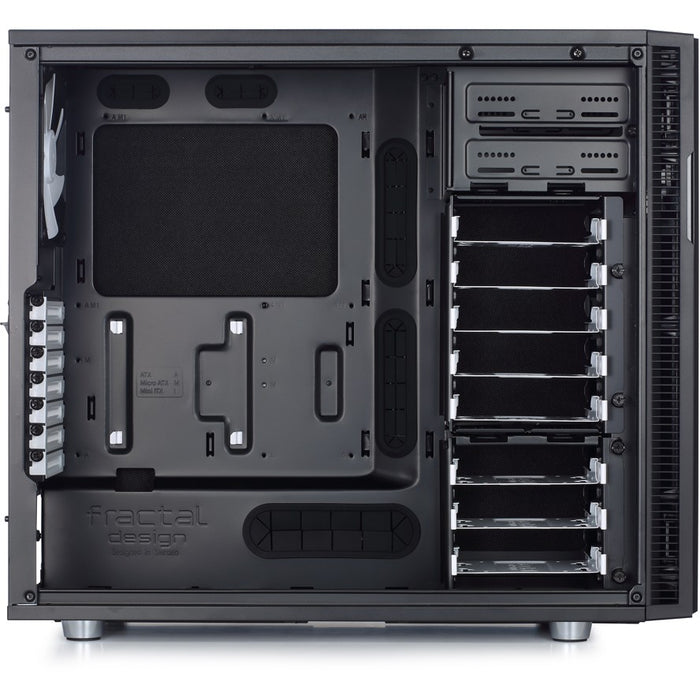

Number of 3.5" bays: 8
Number of 5.25" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 8
Number of internal 5.25" bays: 2
Number of external 5.25" bays: 2
Number of expansion slots: 7

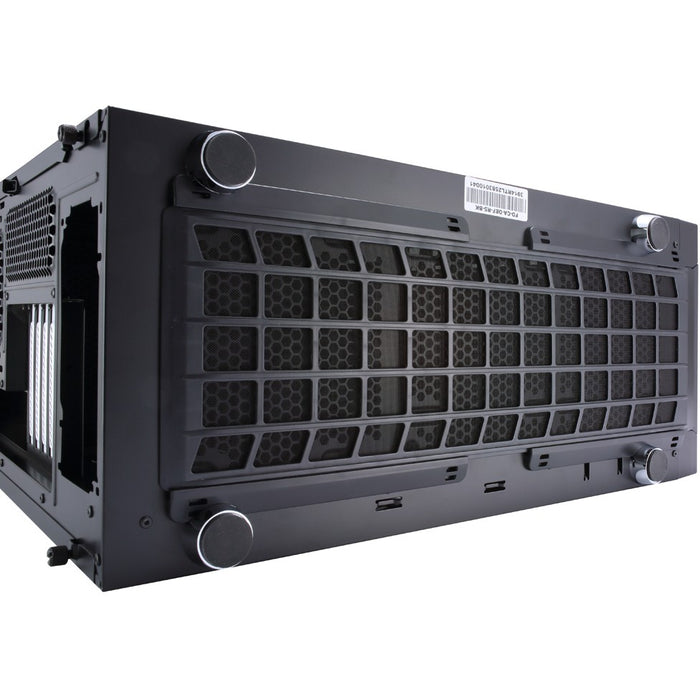

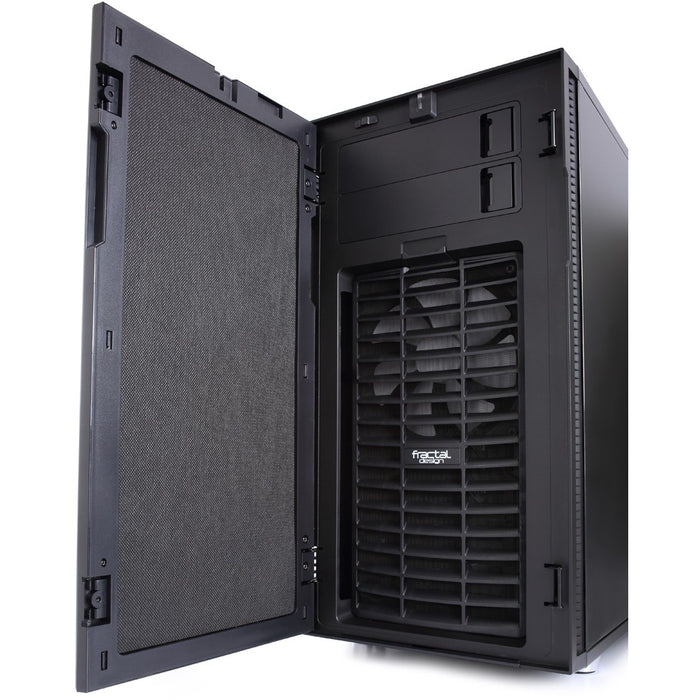

Feature: Anti-dust filter

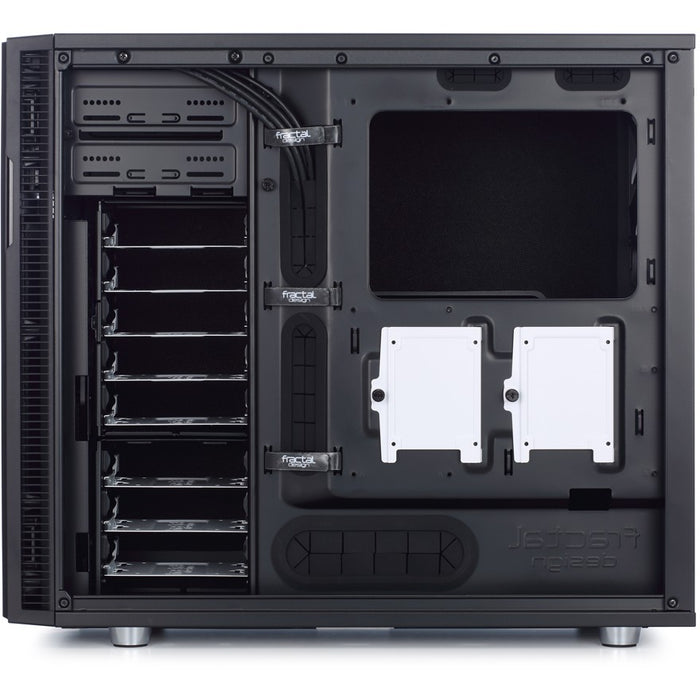

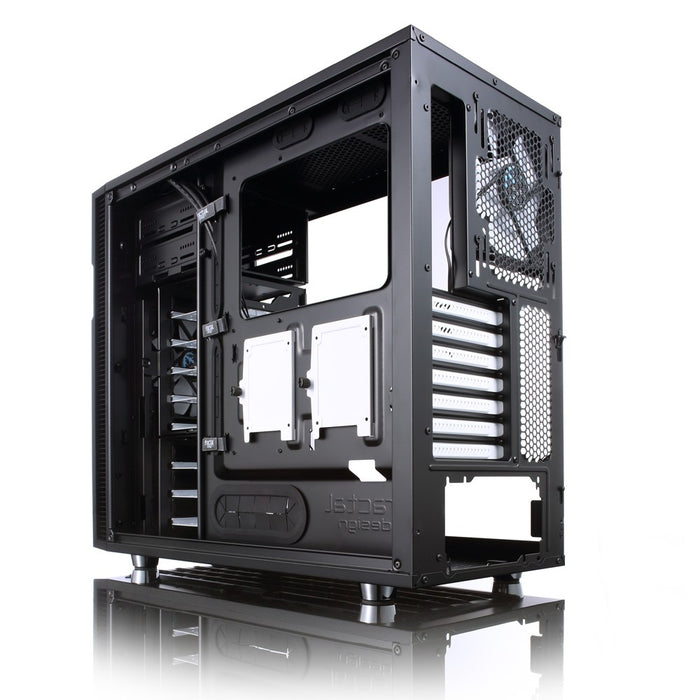

Feature: Cable management
Feature: Reset button
Feature: LED indicators
Maximum CPU cooler height: 18 cm
Maximum graphics card length: 44 cm
Maximum PSU length: 30 cm
Power supply
Power supply location: Bottom
Ports & interfaces
Feature: Audio input
Feature: Audio output

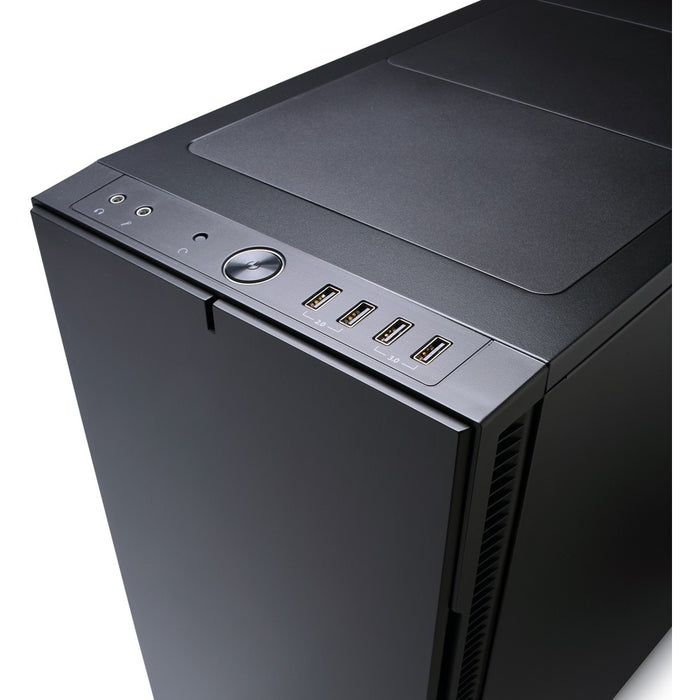

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling

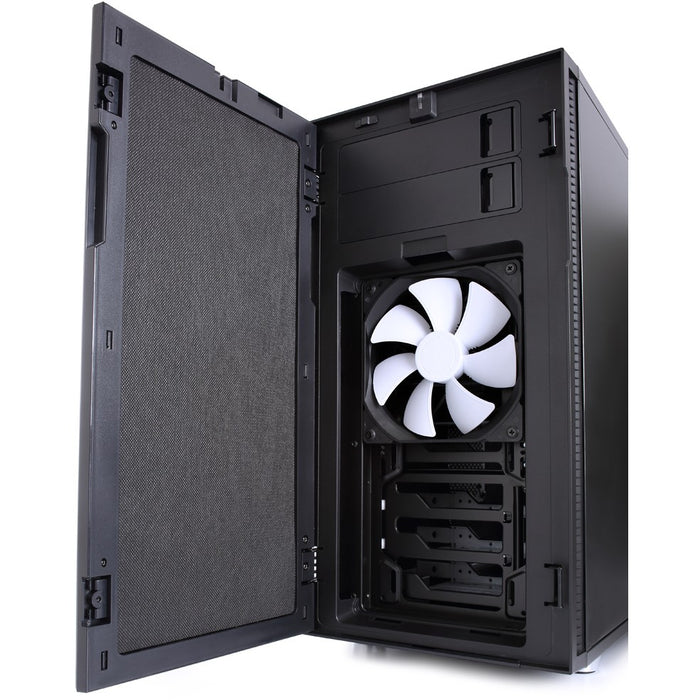

Front fans installed: 1x 140 mm
Number of front fans supported (max): 2
Front fans diameters supported: 120,140 mm
Number of side fans supported (max): 1
Side fans diameters supported: 120,140 mm
Rear fans installed: 1x 140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120,140 mm
Feature: Liquid cooling capability
Front radiator sizes supported: 120,140,240,280,360 mm
Rear radiator sizes supported: 120,140 mm
Top radiator sizes supported: 120,140,240,280,360,420 mm
Storage
Supported HDD sizes: 2.5,3.5,5.25"
Packaging content
Feature: Manual
Weight & dimensions
Width: 232 mm
Depth: 531 mm
Height: 462 mm
Weight: 10.7 kg
Packaging data
Package width: 327 mm
Package depth: 540 mm
Package height: 615 mm
Package weight: 12.5 kg
Logistics data
Harmonized System (HS) code: 84733080
Fractal Design Define R5. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5,5.25". Width: 232 mm, Depth: 531 mm, Height: 462 mm
Fractal Design
MBR CODE - FD-CA-DEF-R5-BK
EAN - 7350041082583
