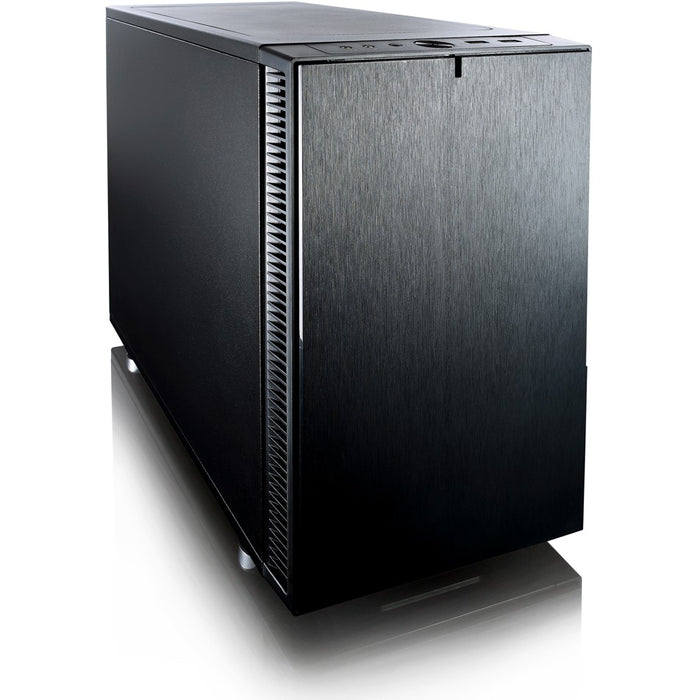

The Define Nano S is an ITX case that features compatibility with high end, full-size components, superior sound dampening, and an ATX-like layout.
The case includes two Dynamic Series fans with both bottom and front intakes protected by easy-to-clean, removable dust filters.
With its mounting capabilities for simultaneous radiators and unobstructed airflow path, the Define Nano S can cool enthusiast-level components.
Equipped with Fractal Design’s signature ModuVent™ technology on the top vents and sound dampening throughout, the Define Nano S can run a powerful system quietly, a hallmark of the Define series.
Design
Form factor: Mini Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 2
Number of expansion slots: 2
Feature: Side window
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: LED indicators
Maximum CPU cooler height: 16 cm
Maximum graphics card length: 31.5 cm
Maximum PSU length: 16 cm
Power supply
Power supply location: Bottom
Supported power supply form factors: ATX
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Front fans installed: 1x 140 mm
Number of front fans supported (max): 2
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 1
Bottom fans diameters supported: 120 mm
Front radiator sizes supported: 120,140,240,280 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,240 mm
Storage
Supported HDD sizes: 2.5,3.5"
Packaging content
Feature: Manual
Weight & dimensions
Width: 203 mm
Depth: 400 mm
Height: 330 mm
Weight: 4.6 kg
Packaging data
Package width: 275 mm
Package depth: 420 mm
Package height: 485 mm
Package weight: 5.8 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Volume: 26.8 L
Fractal Design Define Nano S - Window. Form factor: Mini Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 203 mm, Depth: 400 mm, Height: 330 mm
Fractal Design
MBR CODE - FD-CA-DEF-NANO-S-BK-W
EAN - 7350041084136
