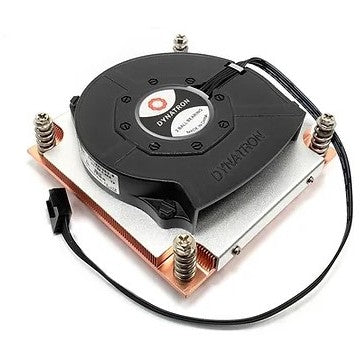

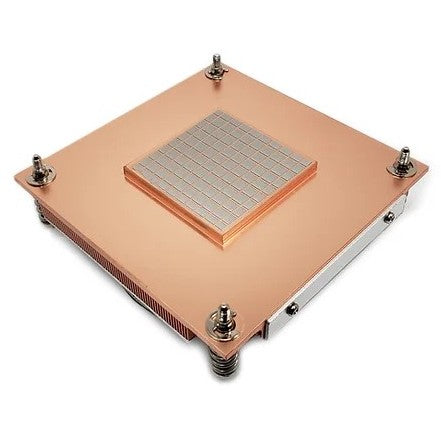

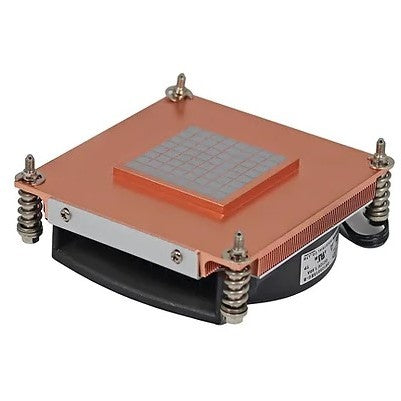

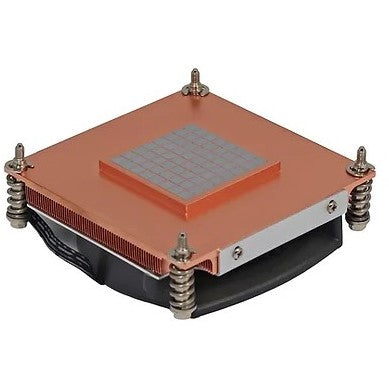

Recommend for Intel® Alder Lake S Processor, Socket LGA 1700, Copper Heatsink with Skiving Fins. Support 125 Watts CPU Power Heat Dissipation for 1U&Up Server Solution.
Performance
Suitable location: Processor
Type: Heatsink/Radiator
Fan diameter: 8 cm
Supported processor sockets: LGA 1700
Rotational speed (min): 1000 RPM
Rotational speed (max): 7000 RPM
Noise level (low speed): 21.5 dB
Noise level (high speed): 59.14 dB
Minimum airflow (imperial): 6.5 cfm
Maximum airflow: 22.28 cfm
Minimum air pressure: 2.27 mmH2O
Maximum air pressure: 74.18 mmH2O
Bearing type: Ball bearing
Fan noise level (min): 21.5 dB
Fan noise level (max): 59.14 dB
Fan bearing technology: Ball bearing
Quantity per pack: 1 pc(s)
Fan speed (min): 1000 RPM
Fan speed (max): 7000 RPM
Design
Product colour: Multicolour
Material: Copper
Number of fans: 1 fan(s)
Power
Voltage: 12 V
Thermal Design Power (TDP): 125 W
Weight & dimensions
Width: 92 mm
Depth: 90 mm
Height: 28 mm
Weight: 444 g
Fan dimensions (W x D x H): 80 x 80 x 15 mm
Dynatron Q3. Type: Heatsink/Radiator, Fan diameter: 8 cm, Rotational speed (min): 1000 RPM, Rotational speed (max): 7000 RPM, Minimum air pressure: 2.27 mmH2O, Maximum air pressure: 74.18 mmH2O, Bearing type: Ball bearing. Voltage: 12 V. Width: 92 mm, Depth: 90 mm, Height: 28 mm. Product colour: Multicolour
Dynatron
MBR CODE - A 2729
EAN - 0859300007772
