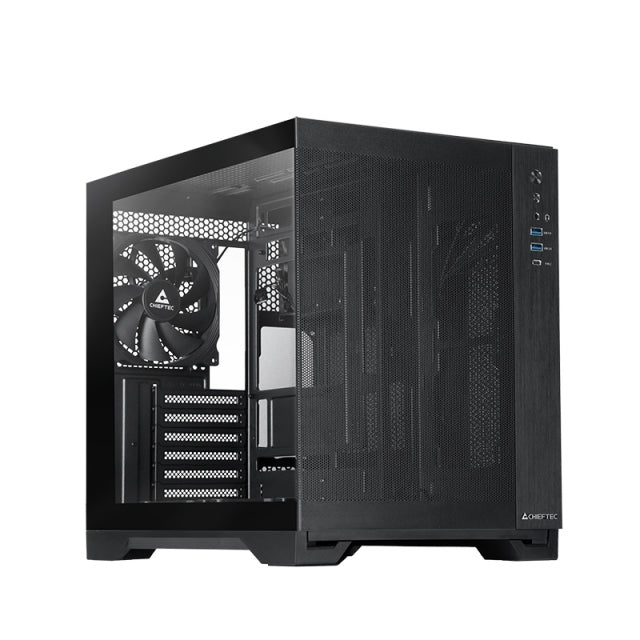

The CHIEFTEC Visio Air performance chassis features a dual-chamber layout to accommodate the latest back-connect motherboards, streamlining cable management for a cleaner interior view (ASUS BTF and MSI Project Zero compatible). The Visio Air comes with tempered glass on the side, a front combining brushed aluminum and mesh panel, along with two pre-installed 140mm PWM fans on the bottom and one 140mm PWM fan on the rear. This design enhances stability and airflow, effectively reducing heat accumulation inside the chassis while keeping noise levels low.
The rened internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated conguration.
The CHIEFTEC Visio Air is versatile enough for both work and home environments, making it a practical choice for various settings.
Design
Form factor: Cube
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 2
Number of storage drives supported: 4
Number of expansion slots: 6
Full-Height expansion slots: 6
Feature: Side window
Suitable for: Gaming
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Maximum CPU cooler height: 17.5 cm
Maximum graphics card length: 41 cm
Maximum PSU length: 20 cm
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Combo headphone/mic port
Cooling
Rear fans installed: 1x 140 mm
Bottom fans installed: 2x 140 mm
Feature: Liquid cooling capability
Top radiator sizes supported: 240,280,360 mm
Storage
Supported HDD sizes: 2.5,3.5"
Feature: HDD/SSD combo cage
Weight & dimensions
Width: 295 mm
Depth: 430 mm
Height: 390 mm
Weight: 6.8 kg

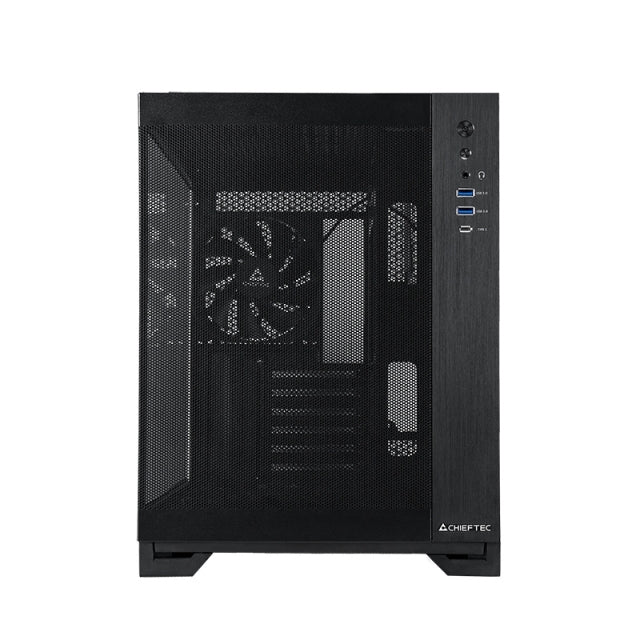

Chieftec mATX Gehäuse GM-30B-M-OP, black. Form factor: Cube, Type: PC, Product colour: Black. Rear fans installed: 1x 140 mm, Bottom fans installed: 2x 140 mm, Top radiator sizes supported: 240,280,360 mm. Supported HDD sizes: 2.5,3.5". Width: 295 mm, Depth: 430 mm, Height: 390 mm
Chieftec
MBR CODE - GM-30B-M-OP
EAN - 0753263078704
