Power
Total power: 350 W
AC input voltage: 115 - 230 V
AC input frequency: 47 - 63 Hz
Input current: 6.3 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 300 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 10 W
Max output current (+3.3V): 16 A
Max output current (+12V1): 15 A
Max output current (+12V2): 15 A
Max output current (+5V): 16 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2 A
Efficiency: 85%
Power protection features: Over voltage, Overload, Short circuit
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 2
Peripheral (Molex) power connectors (4-pin): 2
CPU P4 connector (4-pin): 1
Feature: Floppy disk drive connector
Cabling type: Non-Modular
Performance
Purpose: PC
Power supply unit (PSU) form factor: TFX
ATX version: 2.3
Bearing technology: Sleeve
Design
Product colour: Silver
Fan diameter: 8 cm
Number of fans: 1 fan(s)
Certificates
Compliance certificates: RoHS
Certification: CE, CB, TUV
Weight & dimensions
Width: 86 mm
Depth: 175 mm
Height: 65 mm
Logistics data
Harmonized System (HS) code: 84733020

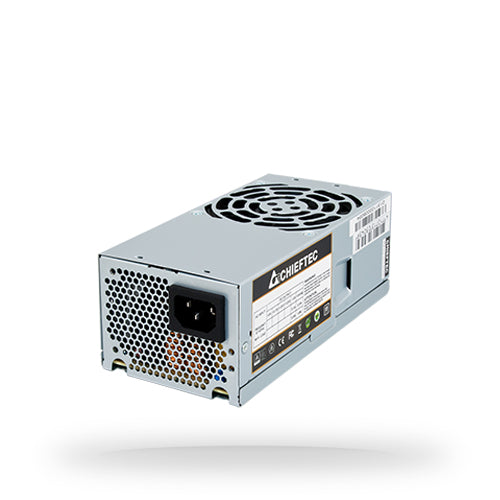

Chieftec GPF-350P. Total power: 350 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: TFX, Bearing technology: Sleeve. Product colour: Silver, Fan diameter: 8 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: CE, CB, TUV
Chieftec
MBR CODE - GPF-350P
EAN - 4710713234673
Total power | 350 W |
AC input voltage | 115 - 230 V |
AC input frequency | 47 - 63 Hz |
Input current | 6.3 A |
Power factor | 0.9 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 100 W |
Combined power (+12V) | 300 W |
Combined power (+5V) | 100 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 10 W |
Max output current (+3.3V) | 16 A |
Max output current (+12V1) | 15 A |
Max output current (+12V2) | 15 A |
Max output current (+5V) | 16 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 2 A |
Efficiency | 85% |
Power protection features | Over voltage, Overload, Short circuit |
Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 2 |
Peripheral (Molex) power connectors (4-pin) | 2 |
CPU P4 connector (4-pin) | 1 |
Floppy disk drive connector | Yes |
Cabling type | Non-Modular |
Purpose | PC |
Power supply unit (PSU) form factor | TFX |
ATX version | 2.3 |
Bearing technology | Sleeve |
Product colour | Silver |
Fan diameter | 8 cm |
Number of fans | 1 fan(s) |
On/off switch | No |
Compliance certificates | RoHS |
Certification | CE, CB, TUV |
Width | 86 mm |
Depth | 175 mm |
Height | 65 mm |
Harmonized System (HS) code | 84733020 |
