Intel H510 chipset
With the Intel H510 chipset and the 10th/ 11th generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors, you will immediately be at the forefront of the battlefield, fueled by mind-blowing power and performance. From content creation to gaming, the Intel H510 chipset provides you with the power and performance you need.
HD Audio
Provides high quality sound with minimal loss of audio fidelity.
HDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.
DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.
Integrated HDMI with HDCP
Onboard HDMI connector allows full video & audio support. It has industry-leading high definition video quality.
Intel GbE LAN
Unlike ordinary LAN solution, Intel GbE LAN offers fewer CPU resource consumption and more bandwidth stability. Thus, Intel LAN is the best choice for performance seekers.
PCIe M.2
PCIe M.2 32Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It's 3 times faster compared with PCIe M.2 10Gb/s.
PCIe Gen 3.0
PCIe 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces.
SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II.
Dual DDR4
The primary advantages of DDR4 over DDR3, include higher module density, lower voltage requirements, coupled with higher data transfer rate.
PCIe 4.0
PCIe 4.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 16GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 3.0, while preserving compatibility with software and mechanical interfaces.
USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.
5 Phase Power Phase Design
5-phase VRM design with high quality power components such as low RDS (on) Mosfet for lower temperature has the advantage to raise the overclocking ability.
100% Solid Caps
With armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components.
UEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly.
BIO-Flasher
BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility.
HDMI
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Processor
Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Supported memory clock speeds: 1866,2133,2400,2666,2933,3200 MHz
Maximum internal memory: 64 GB
Supported memory module capacities: 4GB, 8GB, 16GB, 32GB
Storage controllers
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Graphics
Feature: HDCP
DirectX version: 12.0
Internal I/O
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: EPS power connector (8-pin)
Number of COM connectors: 1

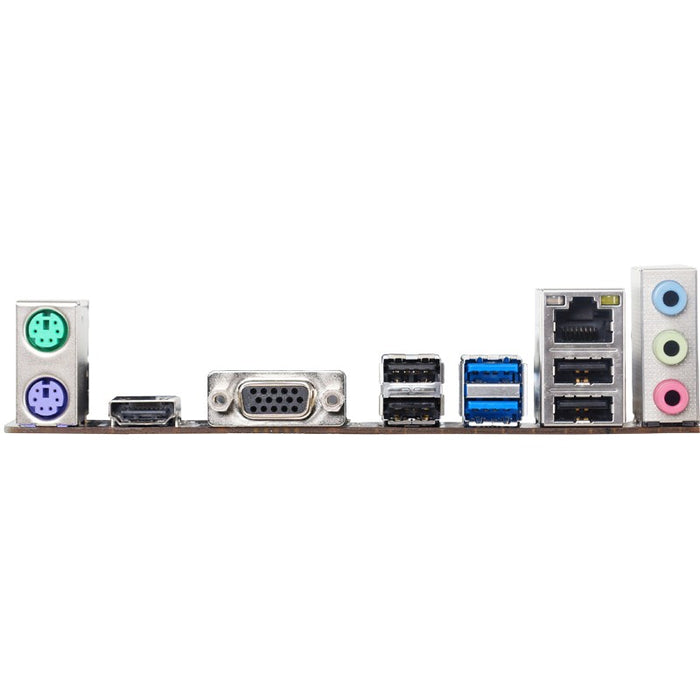

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel® I219-V
Features
Motherboard chipset: Intel H510
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI
Feature: Clear CMOS jumper
Weight & dimensions
Width: 185 mm
Depth: 226 mm
Packaging content
Cables included: SATA
Feature: User guide
Feature: Drivers included

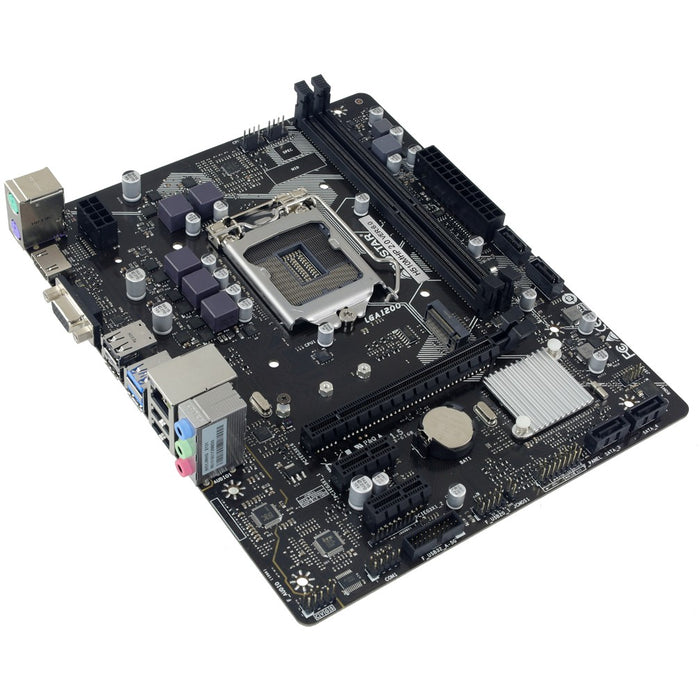

Biostar H510MHP 2.0. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I219-V. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
BIOSTAR
MBR CODE - H510MHP 2.0
EAN - 4712960687011
