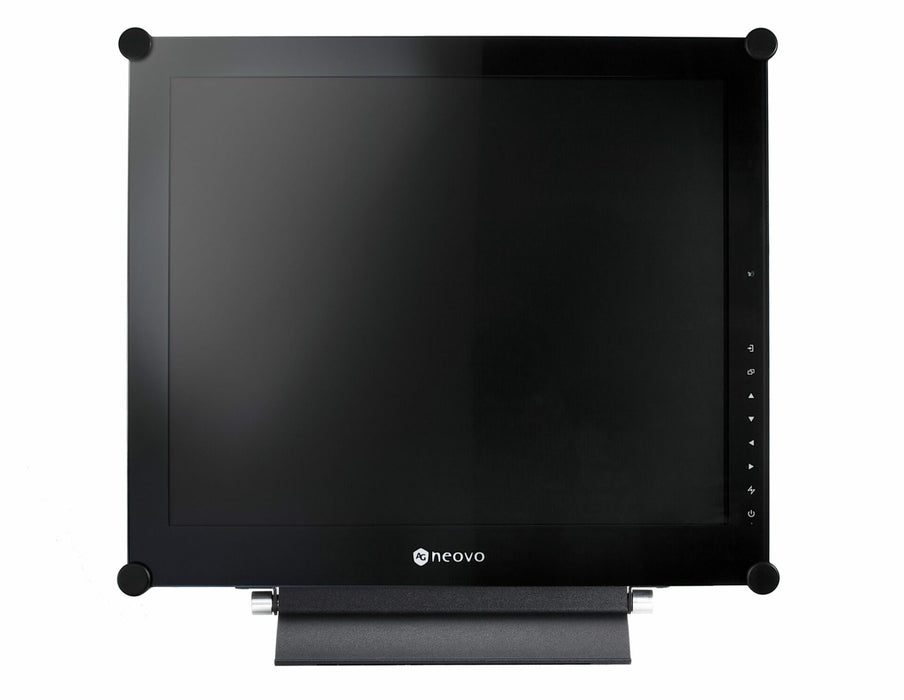

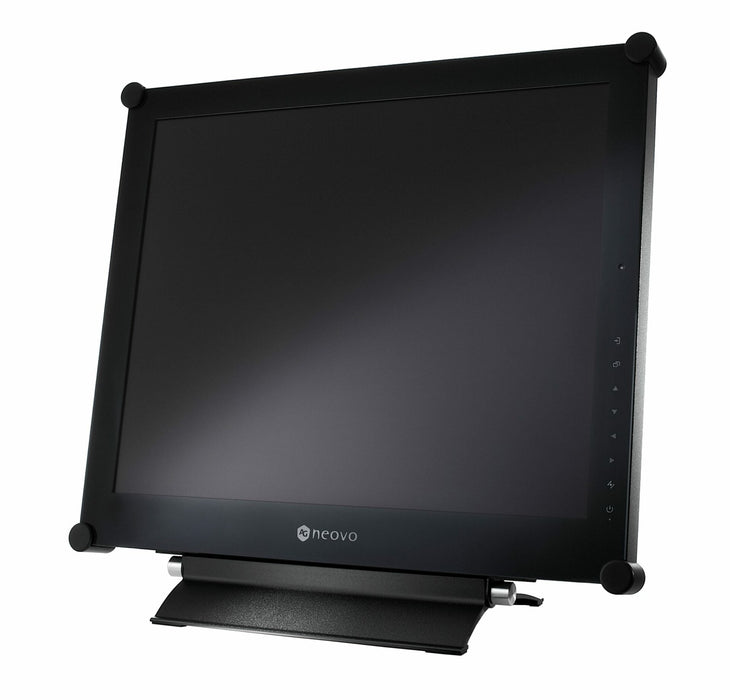

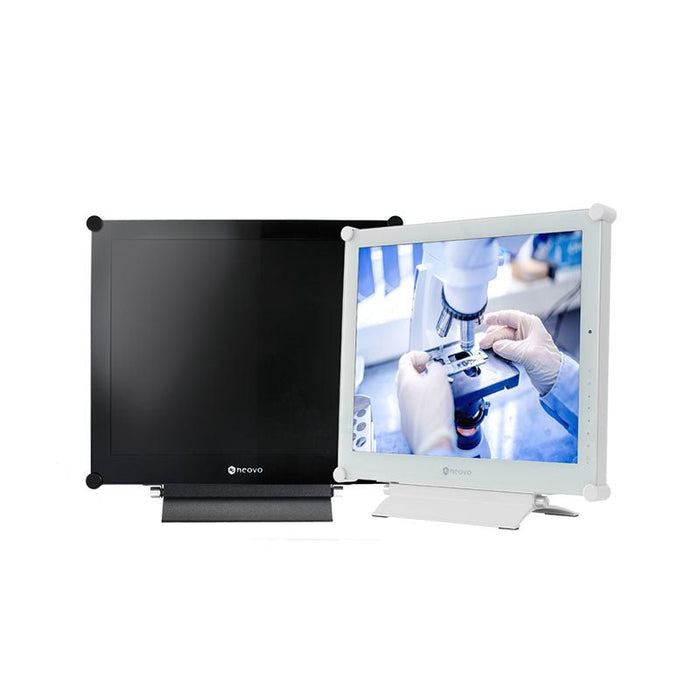

The X-19E 5:4 semi-industrial monitor with the metal casing is designed for reliable 24/7 operation in demanding environments. With selectable gamma curves and versatile connectivity, this monitor provides an optimal visual experience with excellent colour, brightness, and contrast ratio. NeoV Optical Glass screen and corrosion-resistant metal casing shield it from scratches and chemical exposure which make it ideal for public, laboratory, and light industrial applications.
PROTECTIVE GLASS TO WITHSTAND CHEMICAL EXPOSURE
The NeoV Optical Glass attached to the X-19E screen is scratch-resistant with anti-acid and anti-alkali coating treatment and tough enough to withstand repeated cleaning.
DURABLE IN LIGHT INDUSTRIAL ENVIRONMENT
Its corrosion-resistant metal casing provides enhanced heat dissipation, making the X-19E semi-industrial monitor durable for demanding environments.
VERSATILITY, PRODUCTIVITY AND COMPATIBILITY
The X-19E allows viewing critical data and engaging multiple video sources with versatile connectivity, including DisplayPort, HDMI, DVI, and VGA. The PIP/PBP option allows for increased productivity and efficiency. Selectable aspect ratio and zoom functions provide compatibility with different video sources.
PATENTED ANTI-BURN-IN TECHNOLOGY
AG Neovo’s patented Anti-Burn-in technology tackles the LCD monitor burn-in effect, otherwise known as a ghost image on the screen. Burn-in images result in the polarisation of the liquid crystal material contained within the TFT LCD panel. The Anti-Burn-in technology prolongs the lifetime of AG Neovo monitors featuring this technology to secure user’s investment.
CONSISTENT DESIGN WITH A LONGER LIFETIME
Replacing AG Neovo semi-industrial monitors never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
ENHANCED GAMMA CORRECTION
Selectable gamma curves visually optimise different kinds of images. The AG Neovo specialised image settings enhance colour, brightness, sharpness and contrast ratio, allowing the X-19E semi-industrial monitor with a metal casing to improve the light, shadows and colour balance of videos.
Display
Display diagonal: 48.3 cm (19")
Display resolution: 1280 x 1024 pixels
HD type: SXGA
Native aspect ratio: 5:4
Display technology: LED
Panel type: TN
Backlight type: LED
Display brightness (typical): 250 cd/m²
Response time: 3 ms
Screen shape: Flat
Supported graphics resolutions: 1280 x 1024 (SXGA)
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 20000000:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.78 million colours
Pixel pitch: 0.294 x 0.294 mm
Digital horizontal frequency: 24 - 83 kHz
Digital vertical frequency: 50 - 75 Hz
Surface hardness: 9H
Colour gamut standard: NTSC
NTSC coverage (typical): 72%
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Industrial
Product colour: Black
Housing material: Metal

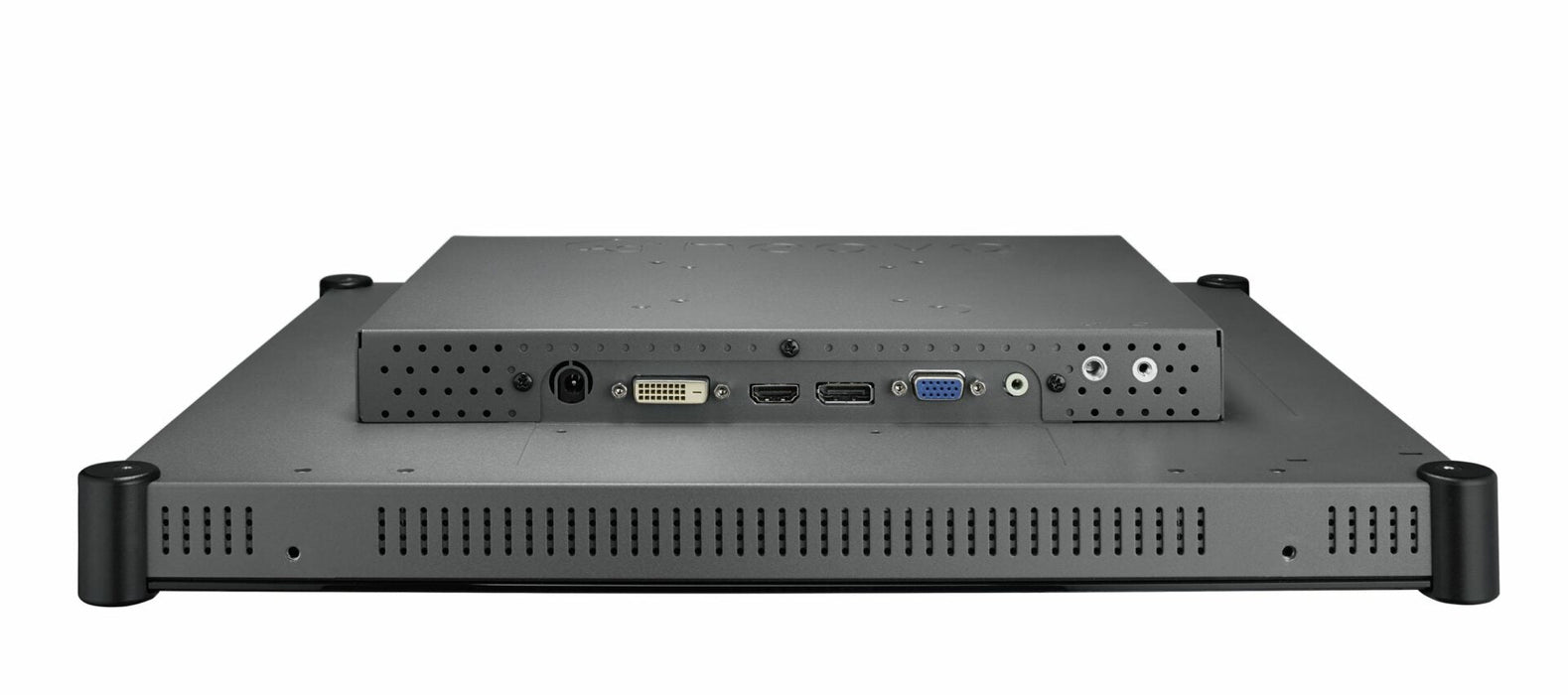

Ports & interfaces
VGA (D-Sub) ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2a
Feature: Audio input
Feature: DC-in jack
Ergonomics

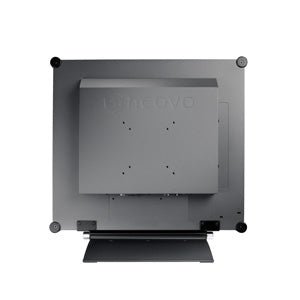

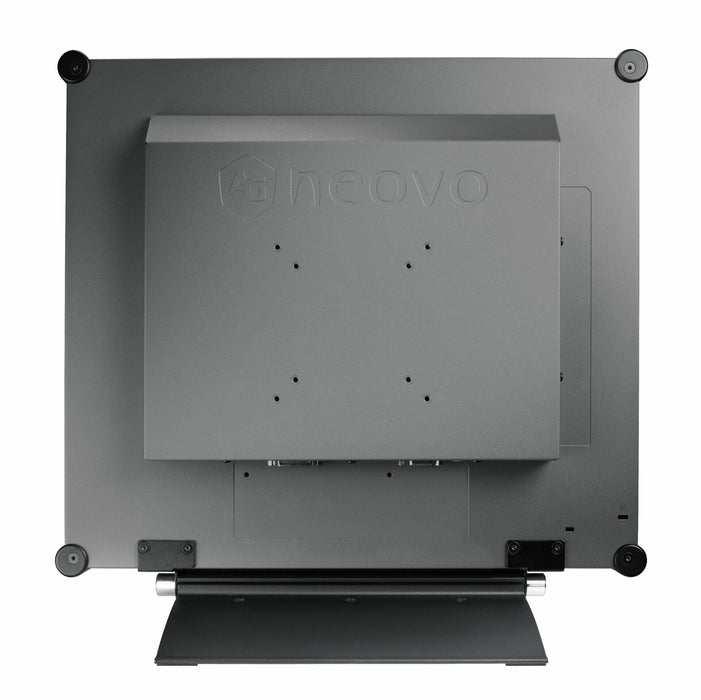

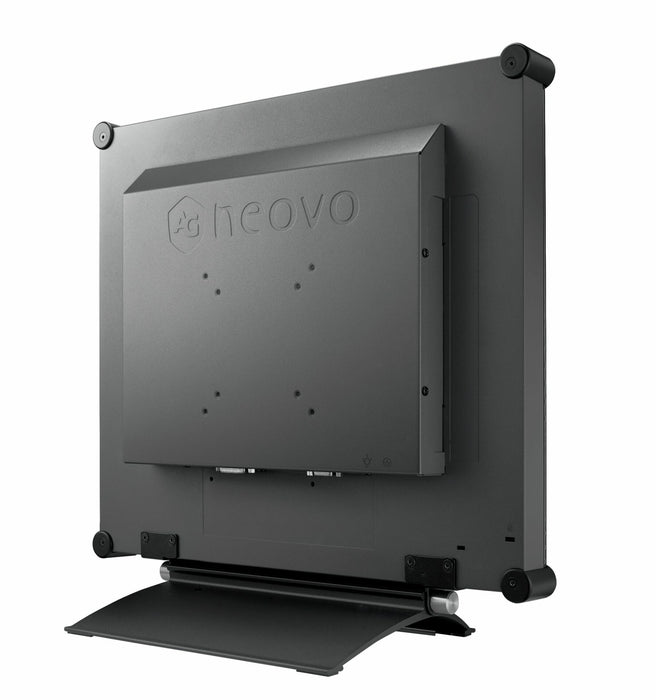

Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: 0 - 20°
Feature: Picture-in-Picture
Power
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 14 kWh
Power consumption (typical): 21 W
Power consumption (standby): 0.5 W
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 444576
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width (with stand): 445.4 mm
Depth (with stand): 175 mm
Height (with stand): 420.2 mm
Weight (with stand): 6.8 kg
Width (without stand): 445.4 mm
Depth (without stand): 64.5 mm
Height (without stand): 383.9 mm
Weight (without stand): 6 kg
Packaging data
Package width: 552 mm
Package depth: 225 mm
Package height: 526 mm
Package weight: 9.3 kg
Packaging content
Feature: Stand included
Cables included: AC, Audio (3.5mm), VGA
Feature: Quick start guide
Other features
Feature: AC adapter included
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Logistics data
Harmonized System (HS) code: 85285210
AG Neovo X-19E. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LED, Response time: 3 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). VESA mounting. Product colour: Black
AG Neovo
MBR CODE - X19E0011E0100
EAN - 4710739594904
