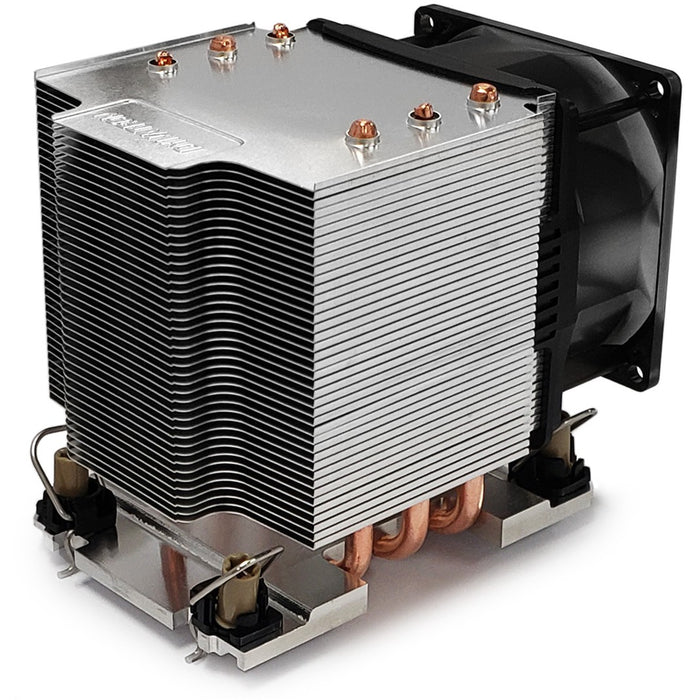

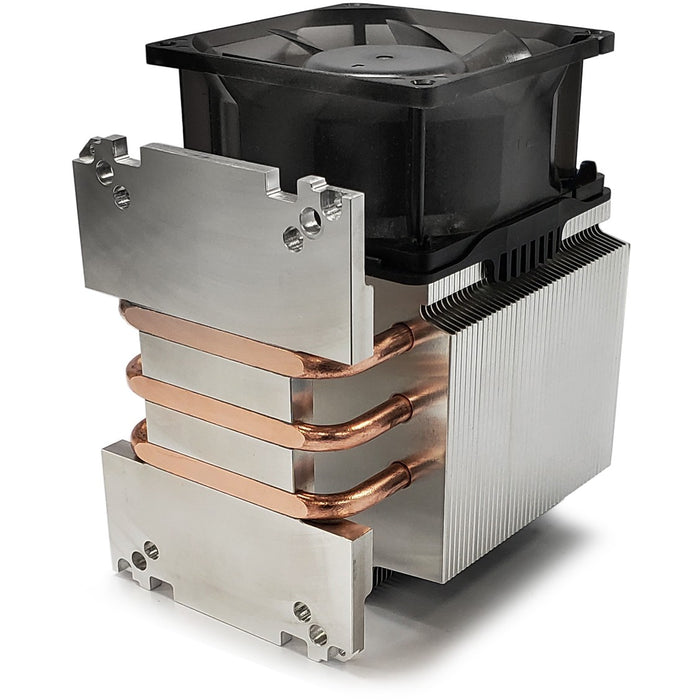

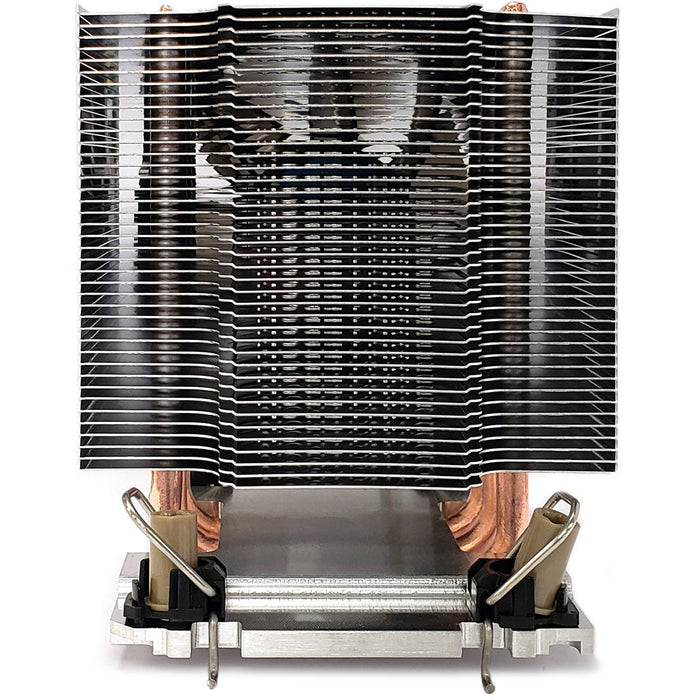

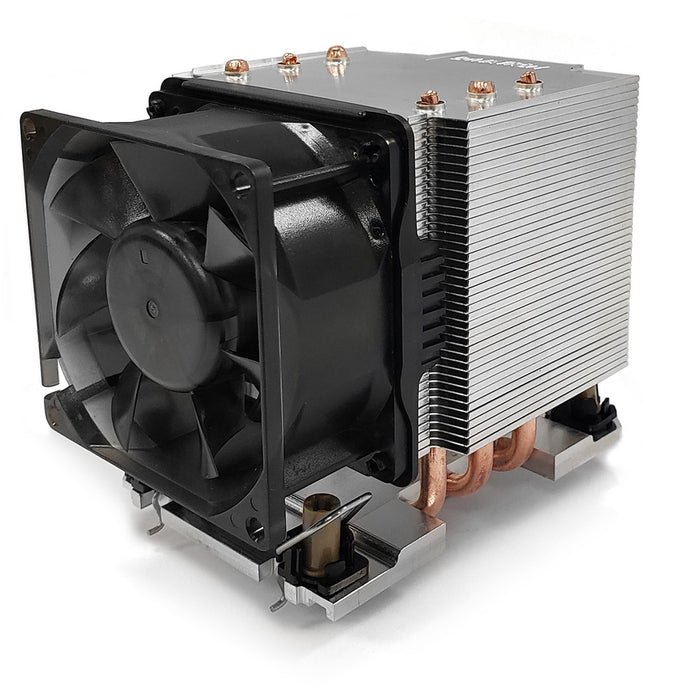

N6
Recommend for Intel® Whitley Platform Ice Lake and Cooper Lake Server Processor, LGA 4189 sockets, Aluminum Stacked Fins with Heat Pipes directly contact CPU, Active Cooler for 3U Server and up, Support 270 Watts CPU Power Heat Dissipation.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 8 cm
Supported processor sockets: LGA 4189
Compatible processor series: Intel® Xeon®
Number of speeds: 3
Rotational speed (min): 800 RPM
Rotational speed (max): 3000 RPM
Noise level (low speed): 13.45 dB
Noise level (high speed): 42.15 dB
Minimum airflow (imperial): 13.67 cfm
Maximum airflow: 51.26 cfm
Minimum air pressure: 0.402 mmH2O
Maximum air pressure: 5.66 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Ball bearing
Fan noise level (min): 13.45 dB
Fan noise level (max): 42.15 dB
Fan bearing technology: Double ball bearing
Quantity per pack: 1 pc(s)
Design
Product colour: Aluminium, Black, Copper
Material: Aluminium, Copper, Plastic
Base plate material: Aluminium
Number of fans: 1 fan(s)
Fins material: Aluminium
Number of heat pipes: 3
Fan connector: 4-pin
Rack capacity: 3U
Power
Power supply: 2.88 W
Voltage: 12 V
Thermal Design Power (TDP): 270 W
Weight & dimensions
Width: 91 mm
Depth: 128 mm
Height: 110 mm
Weight: 600 g
Fan dimensions (W x D x H): 80 x 80 x 38 mm
Fan thickness: 3.8 cm
Technical details
Compliance certificates: RoHS, WEEE
Other features
Feature: Thermal grease
Dynatron N6. Type: Air cooler, Fan diameter: 8 cm, Number of speeds: 3, Rotational speed (min): 800 RPM, Rotational speed (max): 3000 RPM, Minimum air pressure: 0.402 mmH2O, Maximum air pressure: 5.66 mmH2O, Bearing type: Ball bearing. Voltage: 12 V. Width: 91 mm, Depth: 128 mm, Height: 110 mm. Product colour: Aluminium, Black, Copper
Dynatron
MBR CODE - A 2725
EAN - 0859300007550
