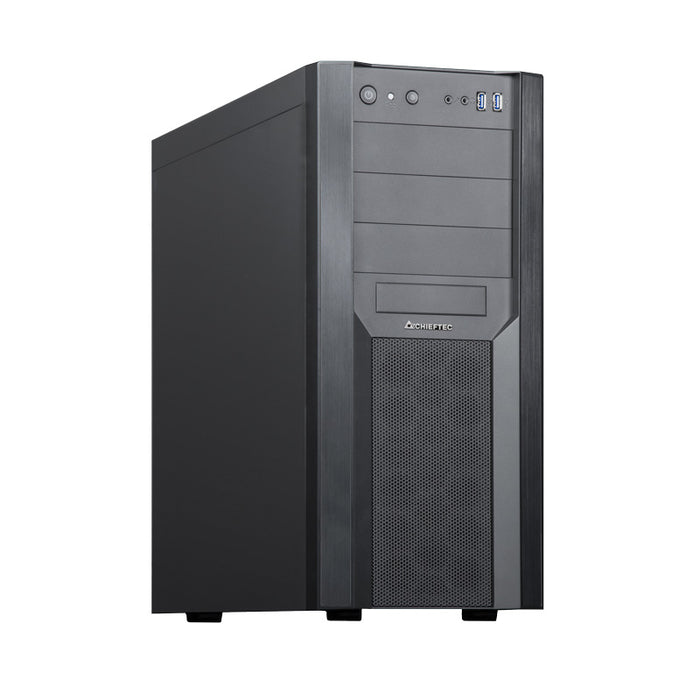

The CW-01B-OP is Chieftec’s interpretation of a high-performance workstation case, providing high functional flexibility with external and internal drives and diverse cooling options. Preinstalled dust filters guarantee you a dust-free system. Featuring a modern, yet timeless, design combining brushed aluminum and filtered mesh, the Chieftec CW-01B-OP provides great airflow for optimal workstation performance.
Design
Material: SPCC
Form factor: Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 7
Number of 5.25" bays: 3
Number of 2.5" bays: 7
Number of internal 3.5" bays: 7
Number of external 5.25" bays: 3
Number of expansion slots: 7
Feature: Anti-dust filter
Maximum CPU cooler height: 16.5 cm
Maximum graphics card length: 41 cm
Power supply
Power supply location: Bottom
Supported power supply form factors: ATX
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Number of front fans supported (max): 2
Front fans diameters supported: 120 mm
Number of side fans supported (max): 1
Side fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 1
Bottom fans diameters supported: 120,140 mm
Top radiator sizes supported: 280 mm
Storage
Supported HDD sizes: 2.5,3.5"
Feature: HDD/SSD combo cage
Weight & dimensions
Width: 210 mm
Depth: 490 mm
Height: 471 mm
Weight: 6.8 kg
Material thickness: 0.7 mm
Packaging data
Package weight: 7.8 kg
Logistics data
Harmonized System (HS) code: 84733080
Chieftec CW-01B-OP. Form factor: Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans diameters supported: 120 mm, Side fans diameters supported: 120 mm, Top fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 210 mm, Depth: 490 mm, Height: 471 mm
Chieftec
MBR CODE - CW-01B-OP
EAN - 0753263076977
