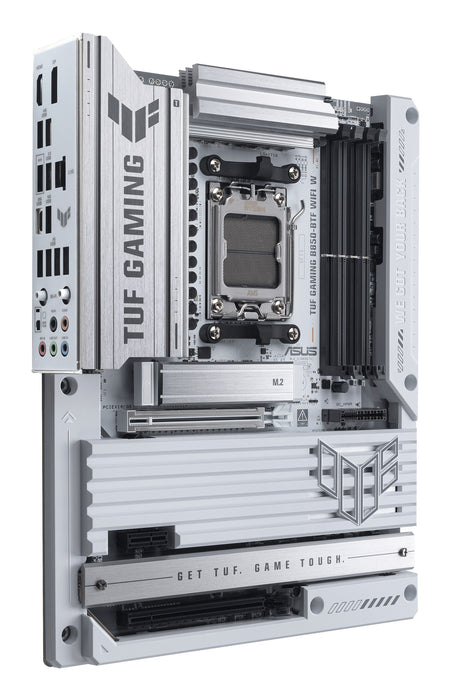

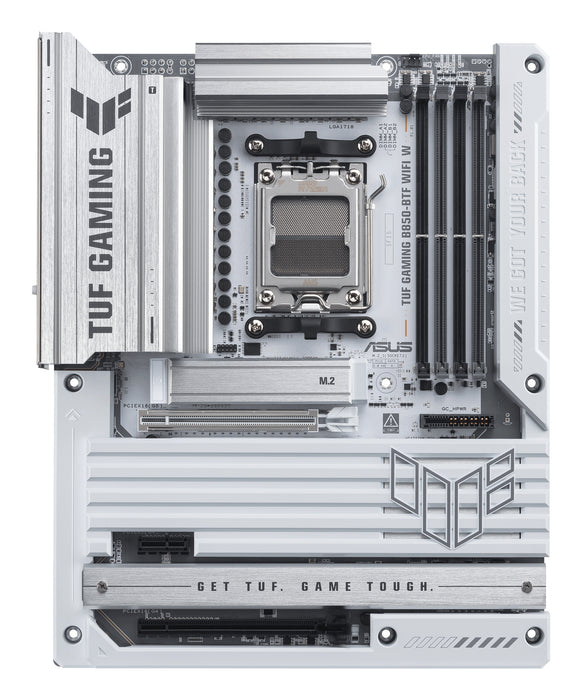

TUF GAMING B850-BTF WIFI W
TUF GAMING B850-BTF WIFI W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance. This platform delivers the power and connectivity that advanced AI PC applications demand.
Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of chassis fan connectors: 4
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Thunderbolt headers: 1
Feature: 12V power connector
Number of water pump connectors: 1
Feature: RGB LED pin header
Number of RGB LED pin headers: 3
Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Line-in
Feature: Microphone in
WiFi-AP antenna jack: 2
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD B850
Audio chip: Realtek ALC1220P
Audio output channels: 7.1 channels
Product colour: White
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Cooling type: Passive
Windows operating systems supported: Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 3
1st M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Packaging data
Package width: 353 mm
Package depth: 273 mm
Package height: 68 mm
Package weight: 2.04 kg
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 57 mm

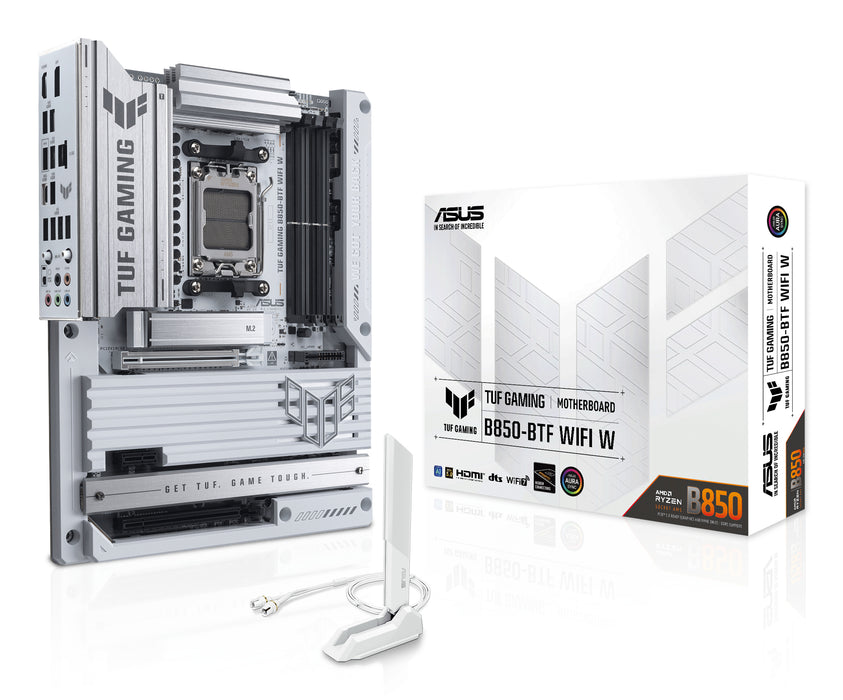

Packaging content
Feature: Antenna included
Other features
Weight: 1.44 kg
ASUS TUF GAMING B850-BTF WIFI W. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
ASUS
MBR CODE - 90MB1KW0-M0EAY0
EAN - 4711387941874
